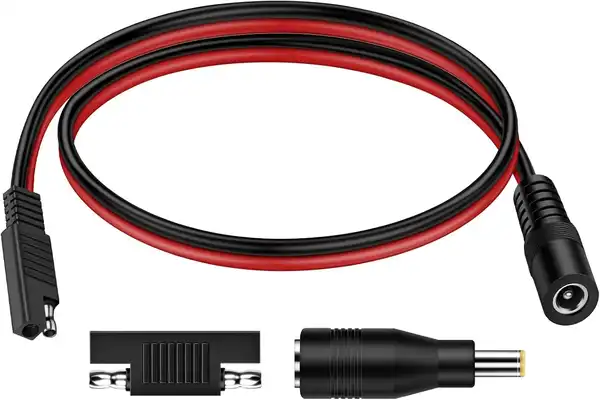

SAE to DC Adapter Simplifies Power Connections for Outdoor Equipment

When powering outdoor equipment in demanding environments, reliable connectivity determines operational success. An SAE to DC Adapter serves as the critical bridge between ruggedized power sources—like motorcycle batteries, solar panels, and portable generators—and standard DC-powered devices. This specialized connector converts the industry-standard SAE J928 quick-disconnect interface into a universal DC 5.5mm x 2.1mm barrel plug, eliminating compatibility headaches in field applications. Whether you're managing heated apparel systems for powersports fleets, deploying security cameras in remote locations, or configuring portable solar setups, understanding how these adapters simplify power distribution will streamline your procurement strategy and reduce installation costs significantly.

Understanding SAE to DC Adapters and Their Role in Outdoor Equipment

The technical base of these power connections is their ability to fix interaction problems between power systems used in cars and those used in consumer electronics. SAE connectors were first used in the car industry to protect batteries. They were made with weatherproof housings and strong mechanical holding. Their two-pin design doesn't depend on the gender of the plug, so connections can be made in either direction. This makes them perfect for harsh outdoor conditions where vibration and moisture are always a problem.

Why SAE Connectors Dominate Outdoor Power Systems?

Manufacturers of outdoor equipment like SAE quick-disconnect technology because it can be installed without tools and seals better against the environment than bare wire terminals. The molded connector bodies have strain support that keeps the cables from wearing out, which is a typical reason why mobile apps fail. Screw connectors become loose over time, but SAE connections keep the contact pressure constant thanks to pins that are filled with springs and can be inserted thousands of times.

The DC Barrel Plug Standard in Modern Electronics

DC 5.5mm x 2.1mm barrel connectors are now the standard for portable electronics that need 12V power. The positive and negative wires are separated by this coaxial design. The center pin usually has a positive voltage. The outside sleeve acts as both a negative return route and an electrical shield. It is very important to understand this polarity arrangement because switching the voltage can instantly damage sensitive electronics.

Critical Applications Driving Adapter Demand

The market for these connectivity solutions is dominated by three main use cases. Powersports fans need reliable links for heated gear that has to work perfectly in freezing weather and with constant shaking. For solar energy systems to charge as efficiently as possible, the paths between the panels and the portable power stations need to have low resistance. Modular connections help industrial automation by letting equipment be swapped out quickly without having to make permanent changes to the wiring. This cuts down on maintenance downtime and labor costs.

Essential Factors When Selecting SAE to DC Adapters for Procurement

Voltage compatibility is the most important thing to think about when choosing a charger. Most outdoor gear runs on 12V systems, but business cars and bigger solar installations often use 24V systems. The SAE to DC Adapter is inactive, which means it just sends whatever voltage is sent to it. Making sure the end gadget can handle the input voltage will keep expensive equipment from breaking.

Wire Gauge and Current Capacity Considerations

The safe working current and voltage drop are directly related to the wire cross-section, and for SAE to DC Adapter, an 18AWG wire structure can usually handle 5 to 7 amps constantly without getting too hot, making it good for heating clothes and small gadgets, and 14AWG or 16AWG wires are needed for devices that draw 10 amps or more, like air blowers or high-wattage lights, and when wiring is too small, it creates resistance, which wastes power as heat and can melt insulation when loads stay the same for a long time. An 18AWG wire structure can usually handle 5 to 7 amps constantly without getting too hot, making it good for heating clothes and small gadgets. 14AWG or 16AWG wires are needed for devices that draw 10 amps or more, like air blowers or high-wattage lights. When wiring is too small, it creates resistance, which wastes power as heat and can melt insulation when loads stay the same for a long time. If you figure out your high current draw before you buy, you can be sure that the safety margins match your practical needs.

Environmental Protection Features

When deployed outside, connections are exposed to UV rays, water, and extreme temperatures. Good adapters have a number of safety features that make them appropriate for use in professional settings. The material used for the wire jacket should not break down when exposed to UV light and should stay bendable from -40°C to +85°C. Nickel-plated metal contacts keep them from rusting in salty seawater, which speeds up oxidation. Heat-shrink sealing at the points where the cables enter keeps water out, which could cause short circuits. If you want to make sure that adapters you place outside will last for a long time, ask for IP65-rated models with compression seals.

Polarity Configuration and Reversal Protection

SAE connectors are polarized by convention instead of mechanical keying, which means that the red wire usually has a positive voltage. However, not all devices follow this rule—battery chargers and some solar controllers flip this polarity. This leads to a lot of misunderstanding, which leads to a lot of field mistakes. Professional adapters have clear polarity marks on the housing, and companies like Kuncan Electronics test their products for 100% polarity proof before they ship them. Some more modern models have diode safety circuits that stop current flow if the polarity is switched. This keeps equipment further down the line from getting damaged by the voltage change.

Evaluating Cable Length Versus Voltage Drop

Longer connections make installation more flexible, but they also add resistance, which lowers the voltage that is supplied. If the voltage drops more than 5% while the load is on it, it could damage the equipment or make it work less well. When choosing the length of the cable, keep in mind that every extra foot of 18AWG wire adds about 0.006 ohms of resistance. Powersports users often need small 6-12 inch adapters to keep voltage loss to a minimum, while solar setups may need 6-10 foot lines to give installers more options for where to put the panels. When you need a longer reach, specifying bigger wire sizes makes up for the longer length.

How to Connect and Use SAE to DC Adapters Safely and Efficiently?

Before turning on the circuit, the right way to connect is to make sure that the polarity is correct at both connection places. Check that the exposed pin on the SAE connector matches your positive source terminal using a digital multimeter in DC voltage mode. Next, make sure that your DC device expects a center-positive configuration. Most do, but some specialized gear needs a center-negative configuration. This quick check saves expensive equipment from damage that would take days to fix or replace.

Step-by-Step Connection Protocol

First, make sure that all power sources are turned off or removed. Check the pins on the SAE connection for damage or rust. If necessary, clean them with electrical contact cleaner. Line up the SAE connector with the power source and press down hard until you hear or feel a click, which means the connector is fully engaged. The spring-loaded retention mechanism should keep the connectors from coming apart by accident, even if the system is vibrating. When you connect the DC barrel plug to your device, make sure it fits all the way in. If it doesn't, high-resistance links form that cause heat and stop working sometimes.

Maintenance Best Practices for Outdoor Environments

Environmental contact speeds up the wear and tear on connectors, so they need to be inspected on a regular basis. Every three months, take the connectors apart and look at both ends for signs of rust, which can be seen as green or white spots on the metal. Before reconnecting, put dielectric grease on any uncovered pins. This petroleum-based substance gets rid of moisture and stops oxidation without affecting the ability of the wires to carry electricity. Cable jackets should be checked for wear and cracks, especially where they come out of junction housings. Field failures during important operations can be avoided by replacing connections that are physically damaged.

Safety Protocols That Prevent Equipment Damage

Outdoor power sources are much less likely to fail when three easy rules are followed, and for SAE to DC Adapter, before making or breaking a connection, you should always turn off the power, and live plugging causes arcing, which wears down contact surfaces, and do not bend wires at sharp angles within two inches of connections, and this puts too much mechanical stress on the conductors and breaks them, and cover empty SAE connectors with protective caps when not in use to keep out foreign objects and short circuits caused by metal surfaces coming into contact with them by chance. Before making or breaking a connection, you should always turn off the power. Live plugging causes arcing, which wears down contact surfaces. Do not bend wires at sharp angles within two inches of connections. This puts too much mechanical stress on the conductors and breaks them. Cover empty SAE connectors with protective caps when not in use to keep out foreign objects and short circuits caused by metal surfaces coming into contact with them by chance.

Comparing SAE to DC Adapters with Other Power Connection Solutions

USB-C Power Delivery is the newest standard for charging portable devices. It can negotiate power intelligently and offer higher voltages up to 20V. But USB connectors aren't strong enough to work in places with a lot of vibration, and they usually only have a 5-amp limit, which isn't enough for hot gear or equipment that needs a lot of power. Due to their small contact area, USB connectors also have higher resistance when a lot of current is drawn through them. This causes heat that can melt plastic housings after a while of use.

Anderson Powerpole Connectors for High-Current Applications

Anderson Powerpole connectors are popular with amateur radio users and emergency response teams because they can handle a lot of current and don't require a gender. When they are the right size, these modular connectors can handle up to 45 amps, and their silver-plated contacts keep the contact resistance low. Modularity is their main benefit—many connectors can be put on top of each other to make multi-circuit systems. The problem with them for general outdoor use is that they are big and need crimping tools to be installed. This makes fixes in the field harder than with SAE connections, which are just plug-and-play.

Cigarette Lighter Plugs in Legacy Systems

Automotive utility plugs, which are often just called "cigarette lighter sockets," work with a lot of different electrical systems in cars. Their side contacts, which are loaded with springs, hold well in fixed uses. But the uncovered center pin rusts quickly outside, and the side-contact design doesn't do a good job of blocking vibrations. Modern standards don't allow them to be used in professional settings because the contact pressure isn't always consistent and they can only handle 10 amps of continuous use.

Quick-Connect Terminals in Industrial Settings

Spring-loaded quick-connect connections work great in industrial control panels where equipment is swapped out often enough to justify the higher cost of installation. These ports let you connect and detach them without using any tools, and the contact force stays the same. Their enclosed design keeps short circuits from happening by accident in electrical enclosures with a lot of people in them. The problem with outdoor equipment is that it needs to be mounted on a panel. This means that it can't be used for portable wire setups that need to be flexible and small.

Procurement Tips for Buying SAE to DC Adapters Online and at Scale

How these communication parts are sourced depends a lot on how many are ordered and what kind of customization is needed. Small-scale purchasers—those needing fewer than 100 units—typically find competitive choices through established online markets where unit price remains accessible despite lower volumes. Large-scale buyers procuring thousands of units annually benefit significantly from direct manufacturer relationships that unlock customization options and volume discounts that marketplace sellers cannot match.

Evaluating Supplier Credentials and Certifications

Third-party certifications that check the safety of the product and the quality of the manufacturing are kept by legitimate manufacturers, and for SAE to DC Adapter, look for ETL or UL recognition marks confirming North American safety standards compliance, CE marking for European market access, and RoHS certification ensuring absence of hazardous substances, and suppliers should easily provide certification paperwork without hesitation—reluctance to share test results often shows counterfeit markings or uncertified goods that open your company to liability risks. Look for ETL or UL recognition marks confirming North American safety standards compliance, CE marking for European market access, and RoHS certification ensuring absence of hazardous substances. Suppliers should easily provide certification paperwork without hesitation—reluctance to share test results often shows counterfeit markings or uncertified goods that open your company to liability risks.

Understanding Lead Times and Minimum Order Quantities

Standard stock items from well-known makers usually ship within days. Custom specs, on the other hand, need to be reviewed by engineers and prototypes must be tested. Allow 3–7 business days for samples to be sent out and 15–25 days for production runs, based on the number of orders. Reliable sellers allow for small orders to be placed at first so that the product can be tested before committing to large-scale purchases. If a seller requires large minimum orders for standard goods, it's usually because they don't have enough manufacturing capacity or operating capital, which could delay deliveries.

Negotiating Terms That Protect Long-Term Supply Chains

There are a number of protective clauses in professional procurement agreements that keep supplies from being interrupted. By asking for standard lock-in, you can stop illegal design changes that might make your equipment less compatible. For at least a year, the warranty should cover problems with the way the product was made, and there should be clear steps for quickly replacing batches that are broken. Setting up accepted component sourcing lists makes sure that the seller can't use cheaper raw materials without permission. When operations are growing and count on regular component supply, these contractual protections are very helpful.

Custom Specification Advantages for OEM Applications

Personalization turns standard parts into unique solutions when you add an SAE to DC Adapter to your product line or branded tool kits. With custom cord lengths, you don't have to worry about having extra wire that sticks out and looks sloppy. Branded plastic housings with your company's name and color scheme make the product look better and stop people from using fakes from the gray market. As an OEM partner, Kuncan Electronics specializes in custom polarity configurations, specialized connector variations such as DC5521 and DC5525 options, and private labeling that turns connectivity components into assets that help build a brand.

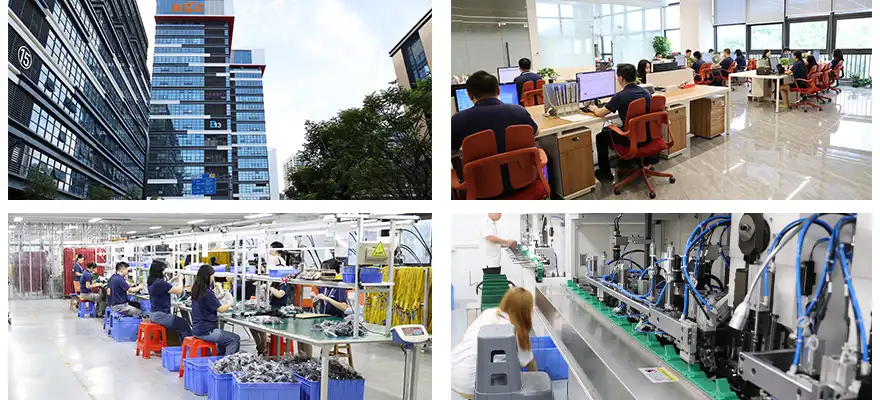

Professional makers help you succeed in more ways than just sending you parts. Every SAE to DC Adapter that Kuncan Electronics makes is the result of 17 years of experience making things precisely. They use ISO-certified production methods and thorough electrical testing protocols. Before being shipped, each item is checked for polarity, contact resistance, and strain relief. This makes sure that the equipment you use is reliable. The company's 300-person production team and diverse supply chain can deliver samples in 3–7 days and production orders in 15–25 days. The company's flexible minimum order numbers allow for both testing and mass production.

Conclusion

Power connection is an important but often forgotten part of setting up tools outside. SAE to DC Adapters solve basic problems with interaction between ruggedized power sources and standard electronics. This makes it possible for users in solar energy, industrial automation, and power sports to work together without any problems. To make a good purchase, you need to find the right balance between electrical requirements like wire size, voltage compatibility, and current capacity, as well as environmental safety features that make sure the product will last for a long time. By knowing these technical factors and the skills of the suppliers, procurement professionals can choose SAE to DC Adapters that make installations easier, lower maintenance costs, and keep expensive equipment from breaking down in tough field circumstances.

FAQ

What voltage systems are compatible with SAE to DC adapters?

These connections work as passive conductors, which means they send any power that is given without changing it. Most outdoor uses 12V systems, but business cars and bigger solar installations often work with 24V systems. The SAE to DC Adapter doesn't control the power; it just connects two different types of connectors. Before connecting, you should always make sure that the end gadget can handle the source power.

How do I prevent polarity-related equipment damage?

Electronics that are sensitive to voltage get damaged right away by polarity errors. Before connecting, use a digital voltmeter to check the polarity at both the SAE source and the DC device. Good adapters have clear polarity markings on the connector housings and colored wire insulation to make sure you can see what the markings mean. Manufacturers like Kuncan Electronics test for 100% polarity proof during production to get rid of mistakes made in the factory.

Can these adapters handle high-current applications like air compressors?

The gauge of the wire determines how much current it can carry. A standard 18AWG design can safely handle 5 to 7 amps constantly, which is enough for small electronics and heated gear. Applications that use 10 amps or more need 14AWG or 16AWG wires to keep the voltage from dropping and the circuit from burning. To make sure the operation is safe, figure out your peak current draw and make sure the right wire gauge is specified when you buy it.

Partner with Kuncan Electronics for Reliable SAE to DC Adapter Solutions

With globally recognized certifications like ETL, VDE, CE, and RoHS compliance, Kuncan Electronics is ready to be your strategic SAE to DC Adapter manufacturer. We offer enterprise-grade connectivity. When you give us your specs, our engineering team works directly with you to make changes to everything from cable lengths and polarity configurations to private labeling and branded packages. Our SAE to DC Adapters are made with 18AWG to 20AWG wire that can handle temperatures up to 105°C and nickel-plated brass contacts that make sure there is little resistance. They can handle the tough conditions that come with being outside. Get in touch with our technical team at rhea@szkuncan.net to talk about your volume requirements and customization needs. We can handle a range of order sizes, and samples will be sent out within 3–7 business days. Production will be completed in 15–25 days.

References

1. Society of Automotive Engineers. (2019). SAE J928 Standard: Low Voltage Battery Charging Connector for Use in Automotive Applications. SAE International Technical Standards Board.

2. Kuphaldt, T.R. (2020). Lessons in Electric Circuits, Volume I - DC. Design Science License, Chapter 12: Practical Considerations for DC Circuits.

3. National Electrical Manufacturers Association. (2021). NEMA WC 70: Standard for Non-Metallic Jacketed Cable and Jacket Compounds. NEMA Standards Publication.

4. Institute of Electrical and Electronics Engineers. (2018). IEEE 1725: Standard for Rechargeable Batteries for Mobile Devices - Safety Requirements. IEEE Standards Association.

5. Underwriters Laboratories. (2022). UL 2556: Standard for Wire and Cable Test Methods. UL Standards Technical Panel Review.

6. International Electrotechnical Commission. (2020). IEC 60529: Degrees of Protection Provided by Enclosures (IP Code). IEC Technical Committee 70 Publication.
