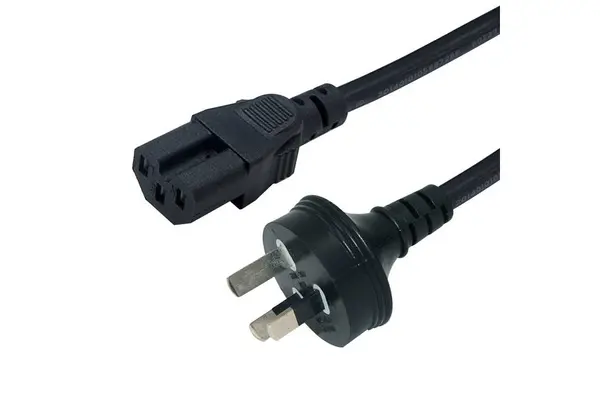

How to Select an AS/NZS 3112 to IEC C15 High-Temp Cord Safely

When sourcing an AS/NZS 3112 to IEC C15 high-temp cord, safety and specification alignment are non-negotiable. This cord pairs the Australian/New Zealand three-pin mains plug with a notched IEC 60320 C15 connector rated for continuous operation up to 120°C—making it distinctly different from a standard C13 lead. To select safely, verify SAA/RCM certification, confirm wire gauge matches load current (1.0mm² or 1.5mm²), inspect strain relief construction, and ensure the supplier provides traceable test documentation. The sections below walk through every criterion that a procurement professional needs.

What Defines a High-Temperature Power Cord and Why Does It Matter?

Understanding the C15 Connector vs. C13

There is a notch on the bottom edge of the IEC 60320 C15 connection, which makes it different from the C13 connection. That notch isn't just for looks; it's a locking mechanism that keeps a C13 cord from being plugged into an unrated C15 outlet. The C13 can only handle 70°C, but the C15 can handle 120°C. People know that putting a C13 lead on high-heat equipment can damage the insulation and make a fire more likely.

Core Specifications You Must Confirm

If you want to buy a good Australian high-temperature power lead, it should meet these basic requirements first:

When choosing power cords for equipment that operates at elevated temperatures, buyers should understand the differences between standard IEC 60320 C13 connectors and notched IEC 60320 C15 connectors, which are designed for compatible high-temperature applications. An AS/NZS 3112 to IEC C15 high-temp cord connects an Australian or New Zealand AS/NZS 3112 mains plug to an IEC C15 appliance connector, making it suitable for equipment that requires this specific connection configuration. Depending on the product design, an AS/NZS 3112 to IEC C15 high-temp cord may be available with different conductor sizes, insulation materials, and temperature ratings to meet particular operating requirements. Common cable materials include PVC and rubber, but buyers should verify the exact cable designation and temperature rating in the manufacturer's specifications rather than assuming all materials offer the same performance. For the Australian and New Zealand markets, an AS/NZS 3112 to IEC C15 high-temp cord should be evaluated for applicable electrical safety and regulatory compliance requirements, including relevant RCM obligations. These cords may be used with compatible servers, kitchen appliances, and other equipment requiring a C15 inlet, provided that the electrical ratings and connector specifications match. Before purchasing an AS/NZS 3112 to IEC C15 high-temp cord, procurement teams should confirm the plug configuration, connector type, rated current, operating temperature, cable construction, and supporting compliance documents. Selecting the correct AS/NZS 3112 to IEC C15 high-temp cord helps ensure equipment compatibility and supports safe, reliable operation in demanding commercial and industrial environments.

Kuncan Electronics makes C15 cords with protective PVC or rubber covers that can handle high temperatures. These cords have 10A/250V electrical ratings and pure copper conductors that are 1.0mm² or 1.5mm² in size. Before the cords are sent out, they are tested for 100% high-pot dielectric and polarity to make sure they meet these specs.

How Do High-Temp Cords Compare to Standard Alternatives?

Material Selection: Why the Jacket Compound Changes Everything

High-grade PVC or vulcanized rubber (H05RR-F) covers the outside of heat-resistant power wires. If you put rubber in a business kitchen or a lab sterilizer, it's very important that it doesn't crack when the temperature changes. Standard wires are made of PVC, which starts to soften and lose its ability to insulate when it gets above 70°C. This could lead to both shock and fire. What you pick for the jacket determines both how long the cord lasts and how safe the equipment is that is hooked up to it.

Mold Design: Strain Relief as a Structural Safety Feature

Both the plug body and the C15 socket head have strain reliefs that are built in and take the force of fitting and normal use. Wires are often moved around when servers are put on a rack. The insulation and conductors wear down over time if the connector junction doesn't have reinforced overmolding. This is hard to see until there is a fault. A good strain relief makes the cord last longer and reduces the number of times it needs to be fixed.

Testing Standards: What Certifications Actually Verify

Certification from Standards Australia (SAA) and an RCM mark on a cord mean that it has passed tests that are in line with AS/NZS 3112 and IEC 60320 for dielectric withstand, continuity, insulation resistance, and mechanical pull-force. When products follow RoHS and REACH rules, it means they don't have any dangerous substances that aren't allowed. Every high-temperature power line made by Kuncan Electronics is checked for RCM compliance and thermal aging. Traceability paperwork is available for businesses that need to keep records for audits.

How to Select the Right Cord for Your Industrial Application

When selecting an AS/NZS 3112 to IEC C15 high-temp cord, buyers should carefully evaluate three critical factors: the maximum ambient temperature at the installation site, the continuous operating current, and the level of mechanical stress the cable will experience. In data centers, hot-aisle temperatures can reach 45°C to 55°C, and the heat generated by a fully loaded AS/NZS 3112 to IEC C15 high-temp cord may further increase the temperature around its conductors and insulation. In commercial kitchens, areas near ovens, steamers, and other heat-producing appliances may exceed 80°C, making it essential to verify that the selected cord's rated operating temperature is suitable for the actual environment. Laboratory autoclaves also require careful consideration because high temperatures and demanding operating conditions can make ordinary power cords unsuitable. Before purchasing an AS/NZS 3112 to IEC C15 high-temp cord, procurement teams should confirm the cable's temperature rating, current-carrying capacity under the expected ambient conditions, insulation material, and compatibility with the connected equipment. They should also assess whether repeated movement, bending, vibration, or tension could damage the cable during use. Choosing an appropriately specified AS/NZS 3112 to IEC C15 high-temp cord helps reduce overheating risks, prevent premature insulation deterioration, and support reliable equipment operation. By matching the cord's technical specifications to the installation environment, businesses can make better purchasing decisions and improve long-term electrical safety.

When making a choice, every B2B buyer should keep these things in mind:

• Thermal headroom: Choose a cord rated at least 20°C above the anticipated peak operating temperature. For most server room deployments, a 105°C rating suffices; for kitchen and autoclave settings, a 120°C rating is the prudent choice.
• Wire gauge vs. load current: A 1.0 mm² conductor handles up to 10A comfortably under IEC standards; a 1.5 mm² conductor provides additional capacity and lower resistive heat generation for high-draw equipment.
• Certification traceability: Request the SAA certificate number and RCM registration. Cross-reference these against the supplier's shipping documentation to confirm authenticity.
• Customization support: Industrial deployments often require specific cable lengths (Kuncan offers 0.5m to 5m), color-coded jackets for power feed identification, and OEM packaging—all of which affect procurement lead times and should be confirmed before placing bulk orders.

For industrial use, cables need to be a certain length (Kuncan says 0.5m to 5m), have jackets that are color-coded to make it easy to find the power feed, and come in OEM packaging. These all have an effect on sourcing lead times, so you should check them all before you place a big order.

What Should You Know Before Placing a Bulk Order?

Finding a reliable AS/NZS 3112 to IEC C15 high-temp cord supplier requires more than reviewing a product datasheet; buyers should also evaluate manufacturing capabilities, quality control procedures, and delivery reliability. Qualified manufacturers should provide evidence of relevant ISO-certified management systems, incoming material inspections, in-process quality checks, and final product testing to help ensure that each AS/NZS 3112 to IEC C15 high-temp cord meets the agreed specifications. Kuncan Gadgets has 17 years of manufacturing experience and has been verified by Alibaba, offering B2B buyers an established sourcing option for power cords and related products. For bulk orders, its stated lead time is 15–25 days, while samples can be dispatched within 3–7 business days, helping procurement teams assess product suitability before committing to larger purchases. When sourcing an AS/NZS 3112 to IEC C15 high-temp cord, distributors should also confirm the applicable plug and connector standards, current rating, temperature rating, cable construction, and required compliance documentation. Flexible replenishment arrangements can further help distributors manage inventory levels and reduce the pressure to maintain excessive stock. By comparing quality assurance records, lead times, and purchasing terms, buyers can determine whether a supplier can consistently provide an AS/NZS 3112 to IEC C15 high-temp cord that meets their operational requirements. Establishing clear specifications and maintaining communication with the supplier can support more predictable procurement and long-term business cooperation.

Custom manufacturing lets you do things like private label packaging, technical drawing review, and project-specific bundling. All of these choices are handled by an in-house tech team, which also offers free planning advice. They are useful for OEM clients who need product sets that are made to fit their own tools and not just standard sizes.

Best Practices for Safe Installation and Long-Term Maintenance

Putting something together the right way starts before the cord gets to the equipment. When you get each unit, check it for a broken jacket, a link that doesn't fit right, and pins that aren't lined up. When you put the wires down, make sure they are not near any sharp edges or sources of heat that are hotter than the cord's stated temperature. Do not use more than 10A/250V of electricity, and do not daisy chain multiple high-draw devices to the same cord.

Every three months, as part of normal maintenance, the jacket should be checked for discoloration, loose joints, and cracks in the strain relief. These are all early signs of heat degradation. Change any cord right away if you can see that the jacket is getting stiffer or cracking. Insulation that is breaking down is a sign of an electrical problem. To avoid having to shut down for planned maintenance, businesses should always have extra parts on hand, and everyone who works with electrical connections should be taught the IEC 60320 connector ratings and AS/NZS 3112 plug safety standards in writing.

Conclusion

For businesses in Australia and New Zealand sourcing an AS/NZS 3112 to IEC C15 high-temp cord, it is essential to evaluate the connector configuration, rated operating temperature, cable materials, and applicable certification requirements. The cord should feature an AS/NZS 3112-compatible mains plug and a notched IEC C15 connector designed for equipment that requires this type of high-temperature connection. When selecting an AS/NZS 3112 to IEC C15 high-temp cord, buyers should also verify that the insulation and outer jacket materials are suitable for the intended operating environment and that the product's temperature and current ratings meet the equipment manufacturer's specifications. Relevant electrical safety documentation and applicable Australian and New Zealand compliance requirements, including SAA certification where applicable and RCM obligations, should be checked before purchase. These considerations are particularly important for data centers, commercial kitchens, and industrial laboratories, where elevated temperatures and continuous operation can place additional demands on power cords. Choosing a properly rated AS/NZS 3112 to IEC C15 high-temp cord helps reduce the risk of insulation deterioration, overheating, and electrical failure. For bulk procurement, businesses should request product datasheets, connector specifications, test reports, and supporting compliance documents from suppliers. By confirming these details before ordering, buyers can source an AS/NZS 3112 to IEC C15 high-temp cord that matches their application requirements and supports safe, reliable equipment operation.

FAQ

What is the maximum temperature rating for these cords?

Kuncan Electronics lets you pick between 105°C and 120°C for the temperature rating. It is best for professional cooking equipment, autoclaves, and other places where the temperature regularly rises above 80°C. The 120°C version has a H05RR-F rubber jacket.

Can these cords be customized for OEM requirements?

Yes. The lengths of the cables can be changed from 0.5m to 5m, as well as the color of the outer jackets, the technical drawings, and the packaging with your own brand name on it. The tech team helps with the whole process, from making the first one for free to making a lot of them.

How do I verify that a supplier's SAA certification is genuine?

Get the SAA license number and compare it to the Standards Australia public record. Also, make sure that the RCM mark is on both the product and the packaging. For each shipment, ask for test records that include high-pot and polarity data.

What wire gauge should I specify for server rack deployments?

A 1.5 mm² wire is best for rack-mounted servers that are close to the 10A rated limit because it lowers the amount of resistive heat that is generated inside the line. When there are a lot of hot aisles, this is an important thing to keep in mind.

Partner with Kuncan Electronics for Certified High-Temp Power Solutions

The company Kuncan Electronics is a good one, and they make AS/NZS 3112 to IEC C15 High-Temp Cords. Their business has been around for 17 years, and their SAA/RCM licenses are known all over the world. We can ship large orders in 15 to 25 days, let OEMs make any changes they want, and guarantee every unit for a year. You can email our expert team at rhea@szkuncan.net to get details, samples, or a price that is based on how big your project is.

References

1. Standards Australia / Standards New Zealand. AS/NZS 3112: Approval and Test Specification – Plugs and Socket-Outlets. Standards Australia, 2023.

2. International Electrotechnical Commission. IEC 60320-1: Appliance Couplers for Household and Similar General Purposes. IEC, 2021.

3. Standards Australia. AS/NZS 3000: Wiring Rules – Electrical Installations. Standards Australia, 2018.

4. International Electrotechnical Commission. IEC 60227: Polyvinyl Chloride Insulated Cables of Rated Voltages Up to and Including 450/750V. IEC, 2007.

5. International Electrotechnical Commission. IEC 60245: Rubber Insulated Cables – Rated Voltages Up to and Including 450/750V. IEC, 2003.

6. Electrical Connection Magazine. "Thermal Performance and Connector Reliability in High-Density Data Environments." Electrical Connection, 2022.
