From Cable Clutter to Stable Power Distribution: Why AV Installers Choose 4-Way powerCON-Style Splitter Cords

In AV system integration, stage lighting, exhibition setup, and temporary event wiring, power cords are often not the first component buyers focus on. However, they can easily become a bottleneck for installation efficiency. When multiple devices are installed in the same area, using separate power cords for every device may quickly lead to crossed cables, confusing plugs, incorrect connections, and difficult troubleshooting. Dongguan Kuncan Electronics Co., Ltd. provides NEMA 5-15P to 4-Way powerCON-Style Locking Connector Power Splitter Cords for these multi-device power distribution applications.

Why Cable Clutter Happens in Multi-Device AV Installations

In conference halls, exhibition booths, studios, stage truss systems, and mobile event sites, AV equipment rarely works alone. Lighting fixtures, display modules, control devices, and auxiliary audio-video equipment are often installed in groups. If every device takes power from a separate location, the number of cables increases quickly, making the wiring path unclear and later inspection more difficult.

Cable clutter is not only a visual problem. For installers and project contractors, it can directly affect debugging efficiency, teardown speed, and maintenance cost. The more cables on site, the higher the chance of incorrect plugging, accidental unplugging, stepping, or pulling. When a power issue occurs, technicians also need more time to identify which device or cable is causing the problem.

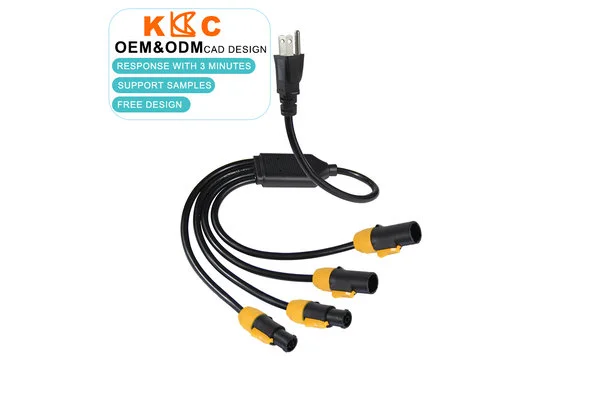

A 4-way power splitter cord helps solve this by using one NEMA 5-15P input plug to distribute power to four powerCON-style locking connector outputs. For multiple compatible devices in the same area, this structure reduces the number of independent power cords, makes the power route clearer, and allows installers to complete wiring in a more modular way.

How Locking Connectors Reduce Accidental Unplugging

Power connections in AV and stage environments often face dynamic conditions. Foot traffic, equipment movement, cable pulling, truss vibration, and last-minute adjustments can all affect ordinary plug connections. With non-locking connectors, loose plugs, unstable contact, or sudden device shutdown may occur.

The advantage of a powerCON-style locking connector lies in its mechanical locking structure. After insertion, the connector provides stronger connection retention, helping reduce accidental disconnection caused by external force. For AV installers, this can reduce the time spent repeatedly checking connection points and lower troubleshooting pressure during live events.

However, locking design does not replace specification matching. Buyers still need to confirm connector type, gender, pin configuration, and equipment-side interface direction. Only when the connector specification is correct can the locking structure deliver its intended value in field applications.

Why 125V/15A and 14AWG/16AWG Matter for Stable Power

Whether a power splitter cord is suitable for AV installations depends not only on the number of outputs, but also on the input rating and wire gauge selection. NEMA 5-15P is commonly used in North American 125V / 15A applications, so buyers need to evaluate whether the cable configuration matches the total connected load.

For short cable runs and light-to-medium loads, 16AWG may be a common option. For longer cable lengths, multiple devices operating at the same time, or continuous-use applications, 14AWG is often worth evaluating. An undersized wire gauge may lead to conductor heat rise, voltage drop at the device end, and unstable equipment operation, which may eventually become after-sales complaints or project inspection risks.

Therefore, when sourcing a NEMA 5-15P to 4-way power splitter cord, buyers should not only ask whether it can split power into four outputs. They should also confirm total wattage, cable length, operating time, installation environment, and certification requirements. Clarifying the choice between 14AWG and 16AWG during the sample stage can reduce later rework caused by insufficient load estimation.

Branch Structure Determines Durability in Repeated Installations

AV projects, rental equipment, and event sites often involve repeated installation, removal, transportation, and rewiring. During repeated use, the areas under the most stress on a multi-way power cord are usually the branch point and connector tail, not the middle of the cable.

If the split structure lacks proper strain relief, long-term pulling and bending may lead to jacket cracking, conductor fatigue, or unstable contact. For rental companies and installation contractors, these issues increase the need for spare cables and maintenance, while also affecting field delivery reliability.

A professional 4-way powerCON-style locking connector power splitter cord should therefore consider the design of the molded split or junction-style branch, and select SJT, SJTW, PVC, or rubber jacket according to the actual environment. For stage and AV applications, a black cable jacket is commonly preferred because it blends into the equipment background and reduces visual distraction.

From Installation Efficiency to Procurement Risk Control

For B2B buyers, the value of a power splitter cord is not simply turning one plug into four outputs. It is about reducing wiring complexity, loose connection risks, and specification selection errors. Especially in OEM customization and batch procurement, the earlier buyers confirm wire gauge, connector type, gender, cable length, jacket material, labeling, and packaging, the easier it is to reduce sample rework and delivery delays.

Dongguan Kuncan Electronics Co., Ltd. provides NEMA 5-15P to 4-Way powerCON-Style Locking Connector Power Splitter Cords for AV, stage, exhibition, and rental equipment applications that require centralized power distribution, fast deployment, and stable connections. For buyers, choosing the right cable is not only about improving installation efficiency, but also about reducing potential risks at the beginning of the project.
