How Do You Match C19 Connectors With NEMA 5-15P Outlets?

Matching a C19 connector with a NEMA 5-15P outlet requires a purpose-built c19 to nema 5 15p power cord that bridges two distinct power standards. The NEMA 5-15P plug fits standard North American 15A/125V wall outlets, while the IEC 60320 C19 connector interfaces with high-current equipment inlets rated up to 20A. These two ends are electrically and mechanically incompatible without a dedicated adapter cord. Using the correct cable ensures safe, stable power delivery to enterprise-grade hardware such as blade servers, high-density PDUs, and large network switches operating continuously in demanding facility environments.

Understanding C19 to NEMA 5-15P Power Cords

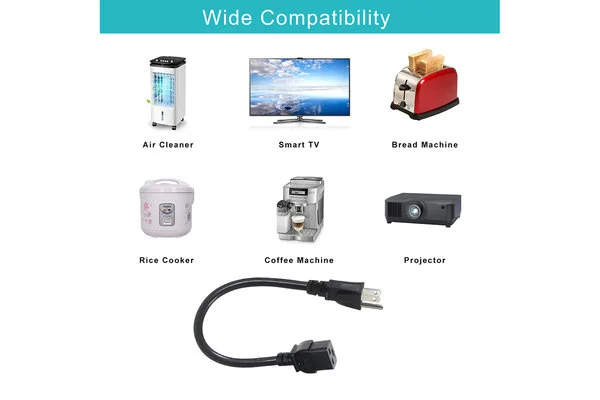

This is a hybrid connection option for connecting normal North American wall outlets to high-current IEC equipment inlets. It's called a c19 to nema 5 15p Power Cord. Knowing how it's put together helps engineers and buying teams make smart decisions about where to get things.

What Makes This Cord Unique?

There are three pins on the NEMA 5-15P side: a line pin, a neutral pin, and a ground pin. These pins are made for 125V/15A North American plugs. The C19 female end, which is regulated by IEC 60320, can handle devices drawing up to 20A. This makes it bigger and more durable than a regular C13 connector. This unevenness is on purpose; the cord safely steps down the outlet interface so that it can work with high-current gear without changing the existing infrastructure. These cords are made by Kuncan Electronics with 14AWG or 12AWG oxygen-free pure copper wires inside an SJT PVC jacket that can withstand temperatures up to 105°C. This ensures that the conductivity stays the same under long-term load.

Key Differences Between C19 and NEMA 5-15P Connectors

Knowing the physical and electrical differences between these two connections can help you avoid mistakes that cost a lot of money during purchase and installation.

Why Mismatches Create Operational Risk

When you connect connectors that aren't compatible, even with a mechanical adapter, resistance is introduced at the junction. This resistance causes heat when it's under constant load. That heat builds up in a data center that is open 24 hours a day, seven days a week. It can lead to insulation failure, arcing, or tripped breakers. By creating a single, proven conductor line from outlet to equipment, a properly rated c19 to nema 5 15p Power Cord removes this risk. A lot of fake cords have aluminum-clad copper or conductors that are too small. These fail UL 817 dielectric withstand tests at the factory level, which Kuncan Electronics confirmed with their 100% hi-pot, continuity, and polarity testing protocol.

How to Choose the Right C19 to NEMA 5-15P Power Cord for Your Business

Procurement managers who need to find these cables for business buildings need to look at a number of factors that affect each other before deciding on a seller.

Here are the most important things to look for when choosing something that will last:

• Wire gauge and conductor material: The usual wire gauge for most server rack uses is 14AWG pure copper. However, 12AWG is better for higher-density installations where the continuous current draw is close to the outlet's rated limit. Copper that doesn't contain oxygen reduces resistance heating and makes cables last much longer than aluminum ones.
• Jacket rating and environmental tolerance: An SJT-rated PVC jacket at 105°C can handle the hot conditions inside tightly packed computer racks. It can also stand up to oil, water, and mechanical wear and tear, which is very important in industrial automation settings where cables run through conduit with other wiring.
• Certifications and compliance: For the US and Canadian markets, UL/cUL listing is a must. RoHS and REACH compliance is important for businesses that have to buy things that are good for the earth. Kuncan Electronics' power lines are certified by UL, cUL, RoHS, and REACH, and full traceability paperwork is available in case of an audit.

Collectively, these factors decide whether a cable works reliably for years of constant use or turns into a problem.

Brands like Tripp Lite and APC are good choices, but OEM buyers can't change much about their lead times or customization options. Kuncan Electronics fills this need by offering custom lengths, colors, and wire gauges that can be supported by CAD. They also offer a 3-minute response time, a 15–25 day bulk production lead time, and there are no minimum order quantities.

Practical Guide: Matching C19 Connectors With NEMA 5-15P Outlets in Your Facility

Step-by-Step Connector Verification

Before putting out any power cords, you should check the equipment's input. The male version of the C19 inlet is called a C20 plug. It has a unique rectangular shape with a notch at one end. Make sure that the sign on the outlet says that it works with 20A and 250V. Next, make sure the wall outlet is a standard NEMA 5-15R receptacle that can handle 15A at 125V. The rated current at the plug end of the cord (15A) cannot be more than the outlet's breaker capacity. Putting a 20A breaker on a 15A outlet is not an improvement in safety; it is a fitting mistake.

Common Installation Pitfalls

The facilities team often feeds these cords through tight turns at the back of server racks. When you bend the wire more than its minimum radius, the copper strands inside wear out, which raises the resistance over time. This is directly addressed by Kuncan Electronics' molded strain relief at both connector terminations, which keeps internal connections safe from tension and repeated bending cycles. Do not daisy-chain through unrated power strips either. The c19 to nema 5 15p Power Cord should link straight to a certified PDU or wall outlet to keep the circuit safe.

A medium-sized colocation provider in the southwestern US replaced adapter kits that didn't work with their new cabinets with c19 to nema 5 15p Power Cords. Over a 12-month monitoring period, they had no reports of power-related problems after switching to tested and certified cables.

Procurement and Transaction Insights for C19 to NEMA 5-15P Power Cords

To get a lot of reliable power cords, you need a seller with clear quality control, quick shipping, and responsible customer service after the sale.

Kuncan Electronics is an Alibaba Verified Supplier that has been making products for 17 years. Sample orders are sent out within 3–7 business days, which gives tech teams time to check fit and performance before committing to large orders. Bulk production runs finish in 15–25 days, depending on how complicated the order is, and there are no minimum order quantities for small batches, which is a big plus for facilities that are managing equipment rollouts that happen at different times.

All goods come with a one-year guarantee that covers problems with the way they were made. Replacement or repair promises are kept quickly. This way of working with suppliers lowers the operating risk that comes with buying cheap cords from distributors that you can't trust. In the business-to-business (B2B) channel, fake materials and missing test paperwork are still common risks when buying things.

Conclusion

It's not enough for a C19 connector and a NEMA 5-15P outlet to be physically compatible; the wire must also be designed to meet the exact electrical and mechanical standards of both interfaces. A high-quality c19 to nema 5 15p power cord should meet strict UL-verified standards, use pure copper conductors, and feature a durable high-temperature jacket. When procurement teams put these specifications at the top of their list, they protect their infrastructure from failures caused by heat, compliance gaps, and unplanned downtime. Kuncan Electronics manufactures each c19 to nema 5 15p power cord to go above and beyond basic requirements. They offer full customization and certified quality, ensuring that every c19 to nema 5 15p power cord delivers the reliable power performance that business buyers need when they cannot risk losing power reliability.

FAQ

Which devices typically use a C19 connector?

A lot of things, like blade servers, high-density PDUs, big business network switches, and UPS output links, use C20 plugs that connect to C19 cords. These are common in factory control rooms, data centers, and places that host the cloud.

How do I verify cord authenticity before installation?

Make sure the jacket has a UL listing mark and that the certification number can be found in the UL Product iQ database. Real cords also have the AWG rating, voltage, and jacket type printed right on the jacket.

Can this cord be used internationally outside the US?

The NEMA 5-15P plug is only meant to work with 125V/60Hz outlets in North America. It needs a plug adapter that is made for that country in order to be used in other places, and the voltage number written on the jacket of the cord needs to be checked before it is used.

What wire gauge should I specify for a high-density rack?

14AWG can handle most normal server loads. For cabinets that constantly draw power close to the 15A outlet limit, 12AWG lowers resistive loss and heat production, which makes the wire and equipment last longer.

Does cord length affect performance?

Resistance goes up in the same way that runs get longer. For high-current applications with runs longer than 10 feet, specifying 12AWG conductors makes up for voltage drop and keeps the power flowing steadily to the equipment.

Partner With Kuncan Electronics for Certified C19 to NEMA 5-15P Power Cord Supply

IT managers and system integrators all over North America trust Kuncan Electronics' industrial-grade c19 to nema 5 15p Power Cord solutions. Every order is backed by UL/cUL approval, 100% electrical testing, and OEM customization as a verified c19 to nema 5 15p Power Cord maker with 17 years of production experience. You can email our team at rhea@szkuncan.net or go to nema5-15.com to get samples, bulk pricing, or a free consultation on your infrastructure right away.
