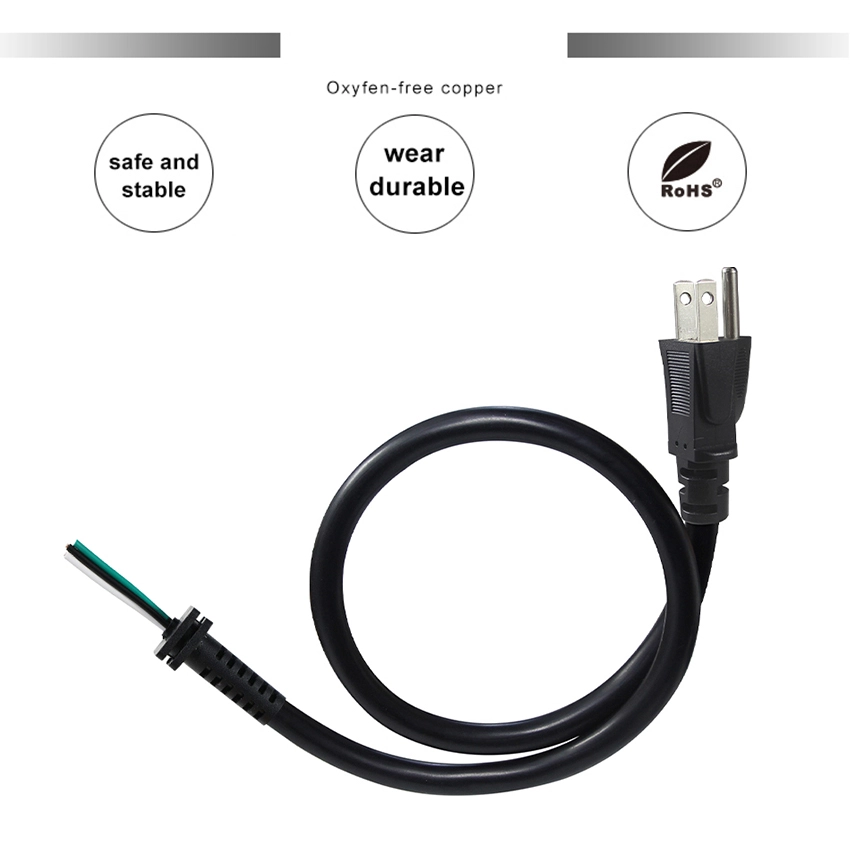

NEMA 5-15P to Stripped End Power Cord with Strain Relief
Integrated Strain Relief Support: Supplied with strain relief protection to help secure the cable at the equipment entry point. This reduces pull stress on internal wiring and helps prevent conductor movement after installation.
Grounded 3-Conductor Cable Structure: Built for line, neutral, and ground routing when produced with the correct conductor layout and approved specification, making it suitable for equipment designs that require ground continuity.
Ready for OEM Wiring and Replacement Work: The stripped end format gives technicians flexibility for terminal blocks, wire nuts, connectors, switches, or internal wiring points where a molded receptacle is not required.
Custom Configuration Available: Cord length, wire gauge, jacket type, stripped length, conductor color, strain relief style, plug molding, cable printing, packaging, and certification route can be customized according to buyer drawings and target market requirements.
- Product Description

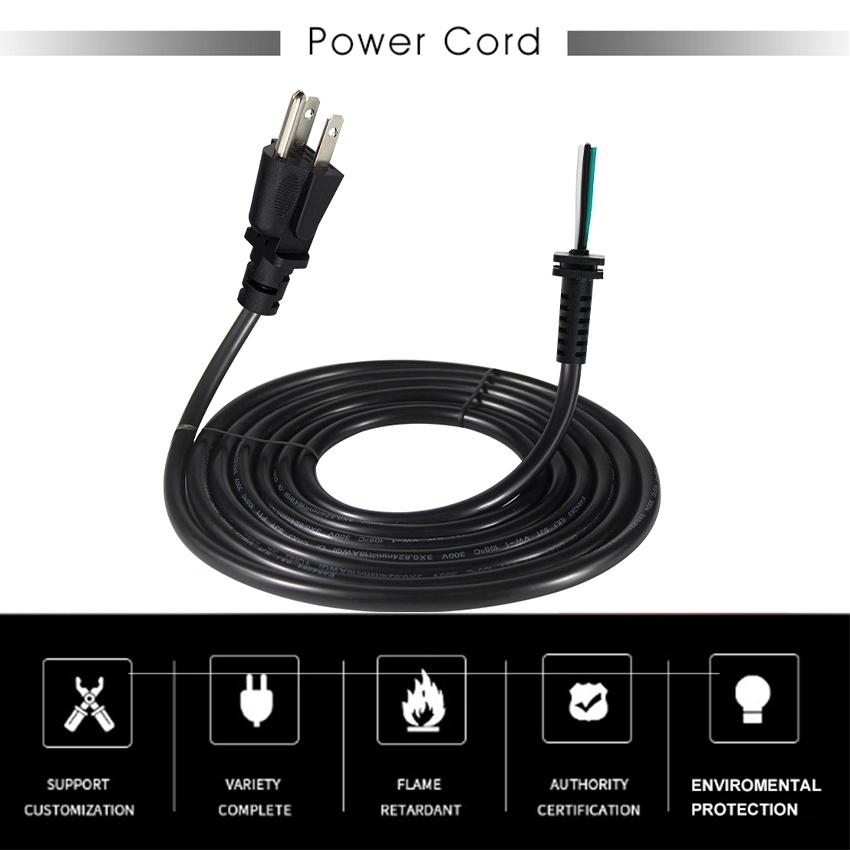

NEMA 5-15P to Stripped End Power Cord with Strain Relief for OEM Equipment Wiring
The NEMA 5-15P to Stripped End Power Cord with Strain Relief is designed for equipment manufacturers, repair teams, and electrical assembly buyers who need a North American grounded plug on one end and direct wiring flexibility on the other. The NEMA 5-15P plug connects to compatible 125V AC outlets, while the stripped conductors can be wired into terminal blocks, switches, power modules, control panels, or appliance assemblies. The strain relief component helps secure the cable at the equipment entry point, reducing pull stress on the internal wiring.
Why Choose Our NEMA 5-15P to Stripped End Power Cord?
This cord is built for wiring work where the open end must be installed into equipment, not plugged into a standard receptacle. The value is in controlled preparation: correct plug, defined conductor structure, stripped lead length, and strain relief support.
NEMA 5-15P Plug Provides Standard Grounded US Power Input
The input side uses a NEMA 5-15P male plug for compatible North American 125V AC environments. It gives equipment builders a familiar grounded wall-side connection while leaving the equipment side ready for internal wiring.
For OEM projects and replacement assemblies, this reduces wall-side compatibility risk. One end is standardized; the other end can be prepared according to your device drawing.
Stripped End Conductors Allow Direct Equipment Wiring
The output side uses stripped conductors instead of a molded receptacle or crimp terminal. This structure gives installers flexibility when connecting to terminal blocks, screw terminals, wire connectors, switches, relays, or internal AC input points.
Do not treat “stripped end” as a loose detail. The stripped length, conductor color, jacket removal length, and wiring assignment should match the approved assembly drawing to prevent field rework.
Strain Relief Helps Protect the Equipment Entry Point
The included strain relief can help secure the cable where it enters the equipment housing or panel. This prevents pulling force from transferring directly to internal wire connections.
For appliances, cabinets, lighting fixtures, and control boxes, this is the difference between a cable that simply reaches the terminal and a cable that can be installed with better mechanical protection.

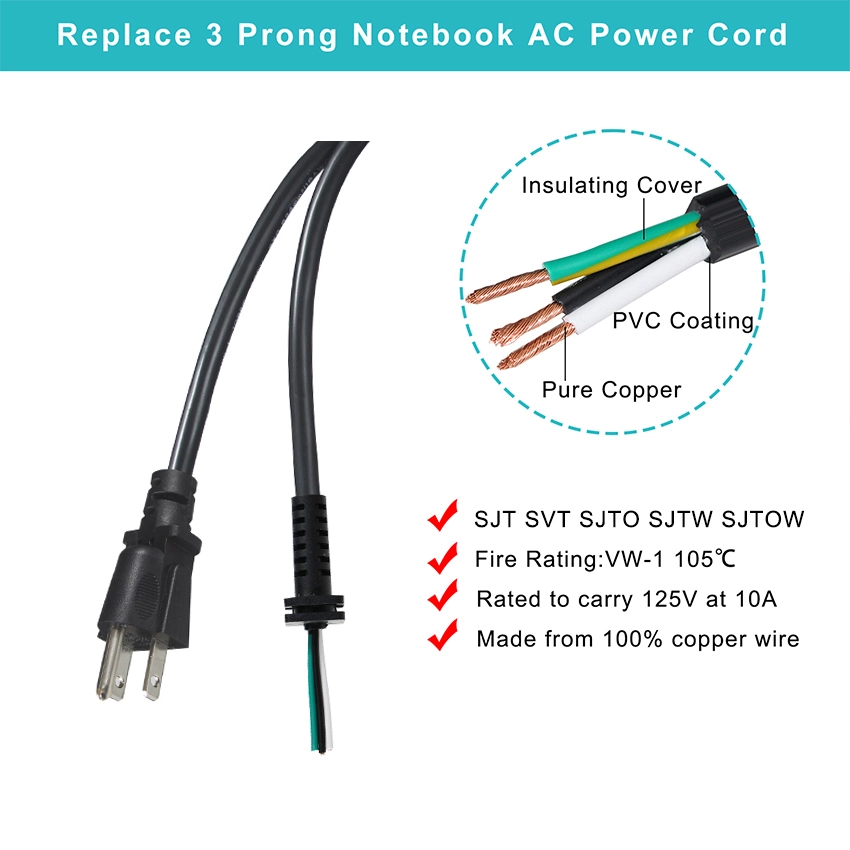

Grounded 3-Conductor Structure Supports Safety Planning
The cord can be built with line, neutral, and ground conductors for compatible grounded equipment designs. Ground continuity should be verified through the final wiring diagram, conductor assignment, and production test requirement.
For metal housings or equipment requiring protective earth, the ground conductor must be routed and secured correctly. Wire color alone is not enough. Confirm the wiring map before production.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | NEMA 5-15P to Stripped End Power Cord with Strain Relief |
| Input Plug | NEMA 5-15P Male Plug, 3-Prong Grounded |
| Output End | Stripped Wire End / Open End for Direct Equipment Wiring |
| Standard Classification | NEMA 5-15P to Stripped End Grounded Power Cord |
| Voltage Rating | 125V AC |
| Current Rating | Up to 15A, depending on wire gauge, cable length, and final certified configuration |
| Wire Gauge Options | 18AWG / 16AWG / 14AWG pure copper conductor options |
| Conductor Structure | Line / Neutral / Ground, according to approved wiring diagram |
| Cable Jacket | SJT / SVT / PVC jacket options |
| Strain Relief | Strain relief bushing, cable clamp, or molded relief style according to installation requirement |
| Wire Preparation | Custom jacket strip length, conductor strip length, wire color, and lead length by drawing |
| Customization Options | Cord length, AWG, jacket type, stripped length, strain relief style, plug molding, cable printing, packaging |
| Certification Options | [Certification Options] |
Buyer's Insight: For stripped end power cords, the most important details are usually not visible in the product title. Confirm jacket strip length, conductor strip length, wire color assignment, ground wire routing, and strain relief style. These items decide whether the cord can go directly into your equipment assembly or needs extra manual preparation.
Professional Applications You Can Trust
For OEM equipment wiring, the main pain point is repeatability. If every operator strips and prepares the wire differently, assembly quality becomes inconsistent. A pre-specified NEMA 5-15P stripped end cord gives production teams a repeatable cable format for terminal wiring.

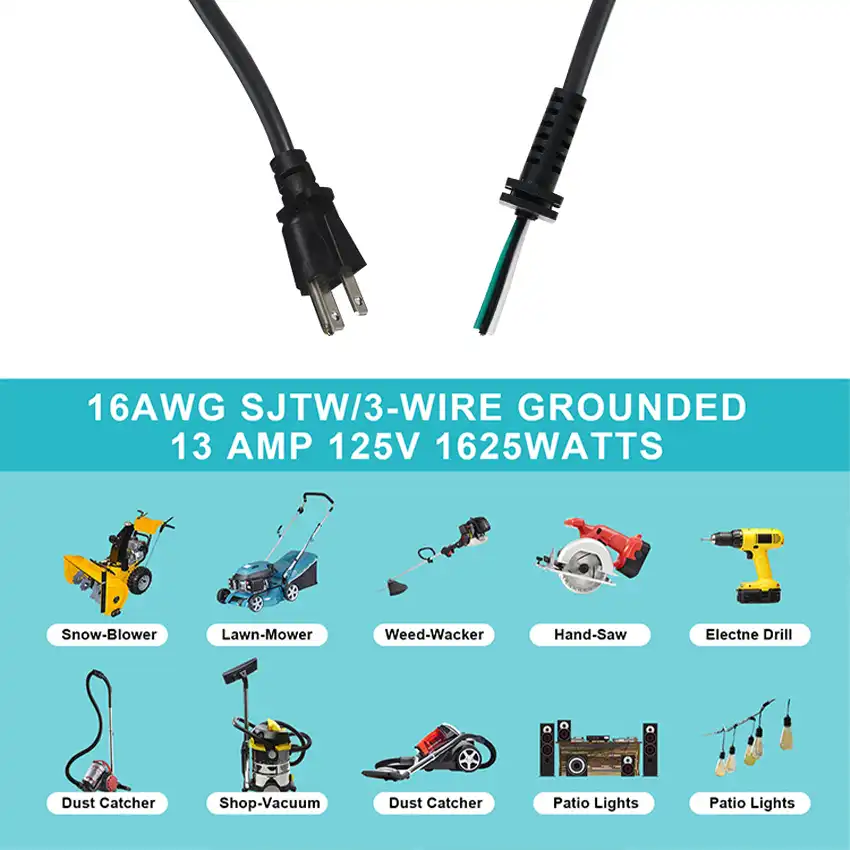

For appliance repair and replacement work, technicians often need a grounded US plug with an open end that can be wired into an existing internal circuit. The stripped conductor design provides that flexibility while the strain relief helps secure the cable at the housing entry point.
For control panels, lighting equipment, and test fixtures, cable routing must stay predictable. Custom lead lengths and strain relief selection help the cord pass through panel holes, clamps, or grommet positions without creating unnecessary tension on the terminal connection.
Advanced Safety Features
The NEMA 5-15P plug supports grounded power input when paired with a proper three-conductor cable structure. The ground conductor must be connected to the correct equipment ground point according to the approved wiring diagram.
The stripped wire end must be installed by qualified personnel according to the equipment design and applicable electrical requirements. Exposed conductors should not remain accessible after installation.
The strain relief should be selected to match cable outer diameter, panel thickness, mounting hole size, and pull-force requirement. Incorrect strain relief sizing can allow cable movement and transfer stress to internal terminals.
Manufacturing Excellence

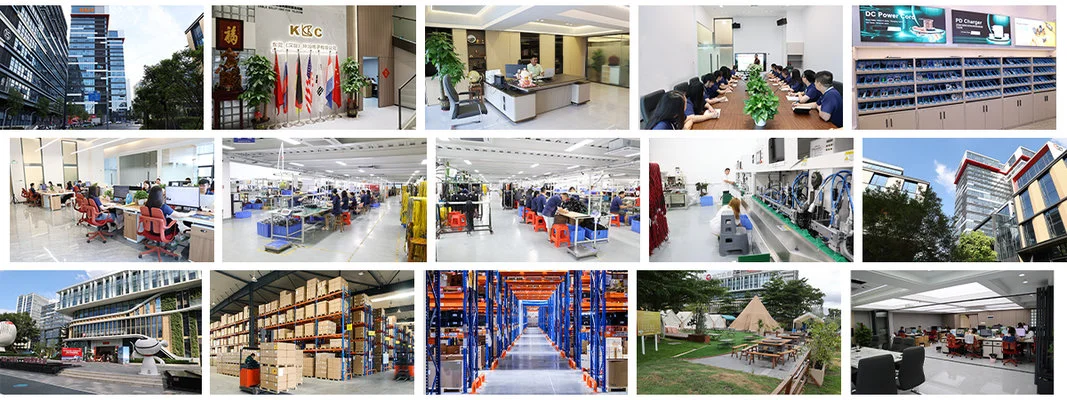

Our factory supports OEM and ODM production for custom stripped end power cords, including NEMA 5-15P plugs, molded strain relief, conductor preparation, jacket stripping, wire color assignment, cable printing, packaging, and compliance documentation. Inspection scope, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.
Frequently Asked Questions
Q: What is the difference between a stripped end cord and a crimp terminal pigtail cord?
A: A stripped end cord leaves the conductor ends exposed for direct wiring or later termination. A crimp terminal pigtail cord already includes terminals such as ring, fork, ferrule, or quick-disconnect ends. Choose based on your equipment wiring method.
Q: Is this NEMA 5-15P stripped end power cord grounded?
A: It can be manufactured as a grounded cord when built with line, neutral, and ground conductors. Ground continuity and conductor assignment should be confirmed in the final wiring diagram.
Q: Can the stripped length and jacket removal length be customized?
A: Yes. Overall cable length, outer jacket strip length, individual conductor strip length, conductor color, lead length, and strain relief style can be customized according to your assembly drawing.
Q: What information is needed for a quotation?
A: Please provide cord length, wire gauge, jacket type, outer jacket strip length, conductor strip length, strain relief style, wire color assignment, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.
Custom Solutions for Your Business
Stripped End Preparation: Define outer jacket strip length, individual conductor strip length, exposed copper length, lead length, and conductor arrangement according to your terminal layout.
Strain Relief Selection: Choose strain relief bushing, snap-in relief, cable clamp, or molded relief style based on panel opening, cable diameter, and equipment housing design.
Cable Length & Wire Gauge: Select 18AWG, 16AWG, or 14AWG pure copper conductor options with suitable cable length and jacket type for your equipment load and routing path.
Branding & Compliance Matching: Cable printing, molded logo, warning label, packaging label, and certification documents can be prepared according to your market and purchasing requirements.
