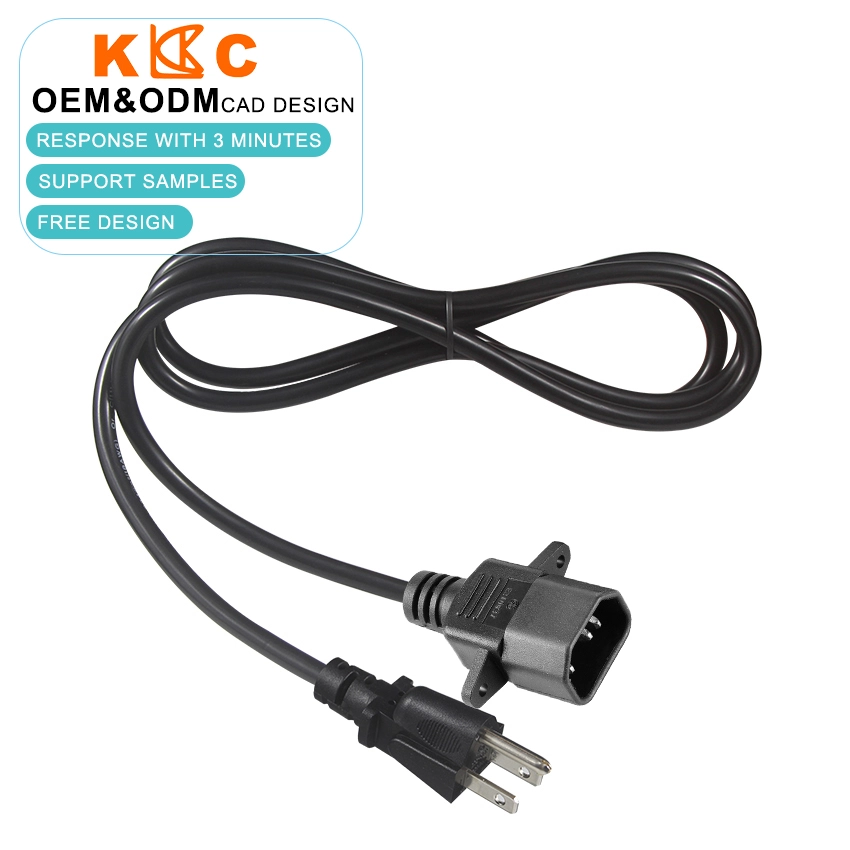

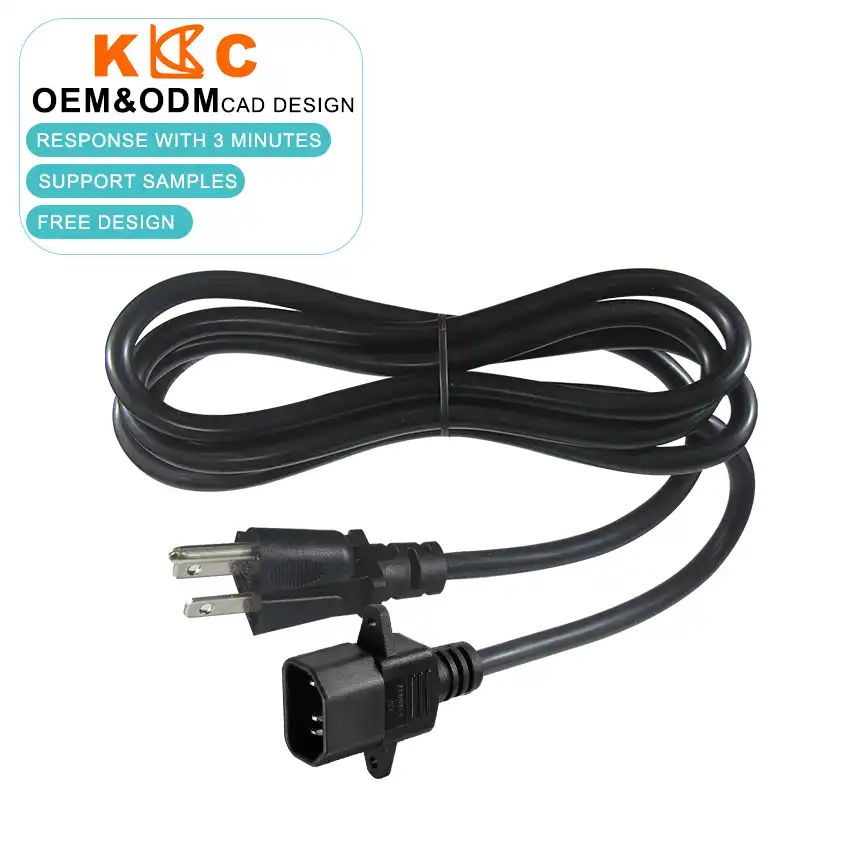

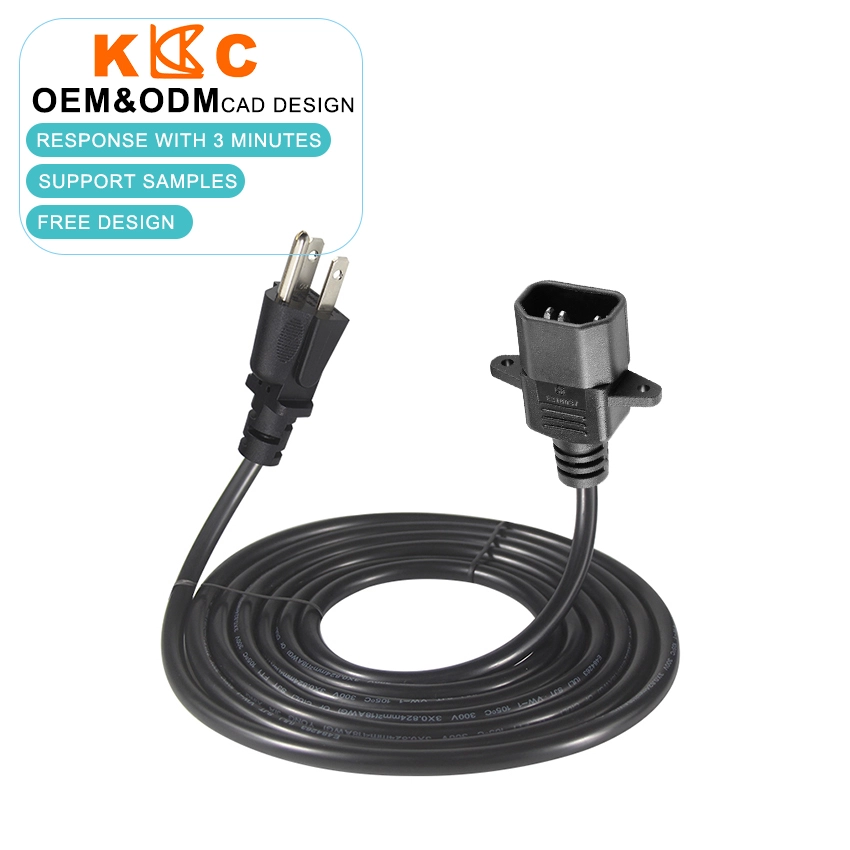

NEMA 5-15P to Panel Mount IEC320 C14 Power Cord for OEM Equipment Power Entry

Why Choose Our NEMA 5-15P to IEC320 C14 Panel Mount Power Cord?

This cable is built for buyers who need a defined AC input interface for finished equipment, not a temporary cord lying loose inside the housing.

NEMA 5-15P Plug Provides Standard North American AC Input

The input side uses a NEMA 5-15P male plug, widely used for North American AC power connection. It gives equipment builders a familiar wall-side connection for compatible power sources.

For procurement teams, the benefit is straightforward: fewer compatibility questions during final installation and easier matching with common US outlet environments.

Panel Mount IEC320 C14 Inlet Creates a Fixed Equipment Interface

The IEC320 C14 connector is designed as a panel-mounted inlet, allowing the cable to terminate at a fixed equipment interface. This structure helps the power entry point remain aligned with the enclosure cutout.

That matters during production assembly. The power inlet does not swing freely, the finished product looks cleaner, and service technicians can locate the power entry point immediately.

Grounded Cable Structure Supports Equipment-Level Safety Planning

NEMA 5-15P and IEC320 C14 are commonly used in grounded AC power applications when the cable is built with the correct conductor structure. Ground continuity should be confirmed in the final wiring drawing and certified production configuration.

For metal enclosures, IT hardware, medical carts, test benches, and control panels, this is not a detail to assume. Confirm conductor count, AWG, jacket type, and certification route before bulk production.

Molded Strain Relief Helps Reduce Connector-End Failure

The NEMA plug side and cable transition areas can be built with injection-molded strain relief. These molded sections spread bending force across the cable jacket instead of concentrating stress at the connector exit.

For equipment that is packed, shipped, moved, and serviced repeatedly, controlled strain relief helps reduce avoidable conductor fatigue and jacket damage.

Complete Product Specifications

Buyer's Insight: The key difference is the IEC320 C14 panel mount end. A standard NEMA 5-15P to C13 cord plugs into equipment. This cable does the opposite job: it helps create a fixed power entry point on the equipment itself. If your product needs an inlet mounted into a cabinet or control box, specify panel cutout dimensions and mounting structure before quoting.

Professional Applications You Can Trust

For equipment enclosures, the power input must be easy to identify and mechanically stable. A panel mount IEC C14 inlet gives the housing a defined power entry point, while the NEMA 5-15P plug connects to a compatible North American outlet.

For mobile carts, test benches, and control panels, loose internal cables can shift during transport or servicing. This power cord helps fix the power interface at the panel, reducing movement around the entry point and making the internal layout easier to inspect.

For OEM power modules and display cabinets, repeatable assembly matters. Once the C14 inlet position is defined, production teams can route the cable consistently across multiple units instead of improvising each installation.

Advanced Safety Features

The NEMA 5-15P to IEC320 C14 structure is intended for compatible grounded AC applications when manufactured with the correct conductor layout. Ground continuity, voltage rating, current rating, and certification route should be confirmed before production approval.

The panel mount inlet helps reduce movement at the equipment power entry point. This can reduce twist stress and accidental pulling around the inlet area during installation, packaging, or field maintenance.

Wire gauge selection should match the actual load and cable length. For higher-current equipment, buyers should confirm whether 16AWG or 14AWG is required according to the final electrical design and certification plan.

Manufacturing Excellence

Our factory supports OEM and ODM manufacturing for custom power cord assemblies, including NEMA plugs, IEC panel mount inlets, molded strain relief, cable printing, jacket selection, packaging, and compliance documentation. Inspection scope, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.

Frequently Asked Questions

Q: Is the IEC320 C14 end a plug or a receptacle?

A: IEC320 C14 is a male inlet, commonly used as an equipment power entry connector. It should not be confused with IEC C13, which is the female connector commonly found on standard computer power cords.

Q: Can the IEC C14 inlet be mounted directly into an equipment panel?

A: Yes. The C14 end can be configured as a panel mount inlet. Buyers should provide the panel cutout size, flange shape, screw-hole position, mounting direction, and housing thickness before production.

Q: What current rating should we choose for this power cord?

A: The final rating depends on wire gauge, connector rating, jacket type, cable length, and certification configuration. Common project options include 10A, 13A, or 15A. Please match the rating to your device load and target market requirements.

Q: What information is needed for a quotation?

A: Please provide cable length, wire gauge, jacket material, C14 panel mount structure, panel cutout drawing, plug direction, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.

Custom Solutions for Your Business

Panel Mount C14 Customization: Adjust the C14 inlet flange, screw-hole spacing, snap-in structure, mounting direction, and panel fit according to your enclosure design.

Cable Length & Wire Gauge: Define cable length and choose 18AWG, 16AWG, or 14AWG pure copper conductor options according to load, routing path, and certification requirement.

Custom Molding: Modify the NEMA 5-15P plug shape, strain relief length, cable exit direction, connector housing, and molded branding to match your equipment design.

Certification Matching: Compliance documents, cable markings, packaging labels, and test requirements can be prepared according to your target market and purchasing checklist.
