NEMA 5-15P to Dual IEC C13 Power Splitter Cord with Independent Switches
Universal C13 Receptacles: Combines a straight NEMA 5-15P male plug with two standard IEC 320 C13 female connectors. Matches exact power input requirements for desktop PCs, commercial displays, and rack-mounted IT servers
Reinforced Strain Relief: Engineered with heavy-duty injection-molded strain reliefs (SR) at all plug and junction transition points. This effectively disperses physical tension and prevents internal wire breakage during frequent cabinet cable routing.
Optimized Rack Density: The 1-to-2 distribution architecture condenses two equipment power feeds into a single wall or PDU outlet. This directly lowers required PDU port counts and reduces cable clutter in dense data center environments.
Commercial Grade Safety: Manufactured using 14AWG/16AWG pure copper conductors and flame-retardant PVC under UL/cUL protocols. Delivers stable 125V AC transmission with maximum thermal dissipation under continuous IT loads.
- Product Description
NEMA 5-15P to Dual IEC C13 Power Splitter Cord with Independent Switches | IT Hardware Power Management

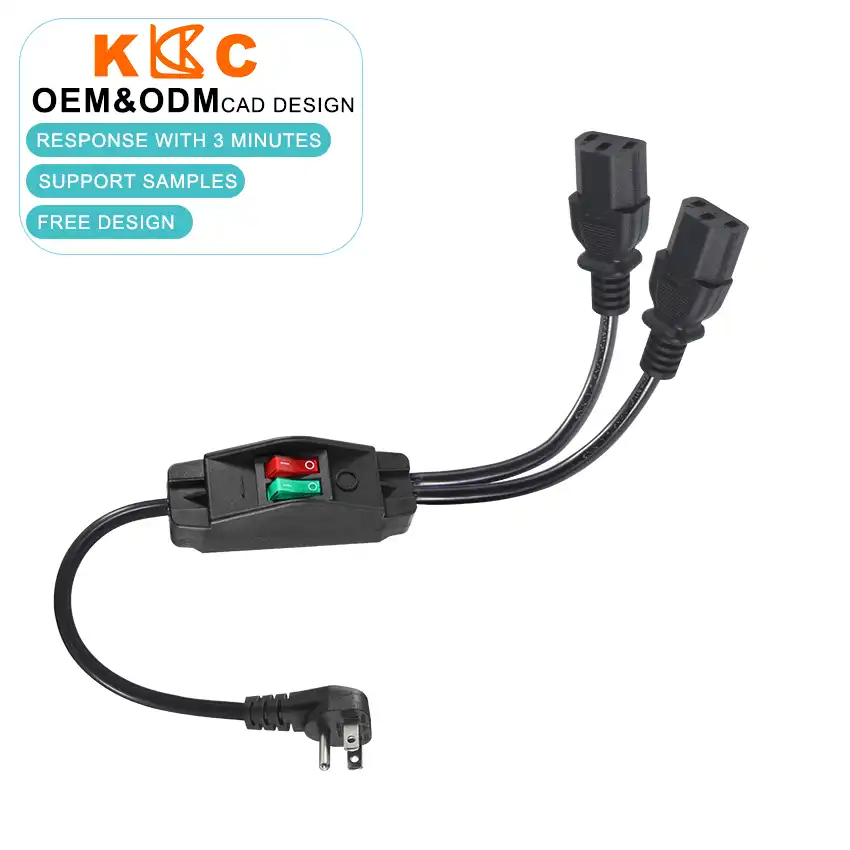

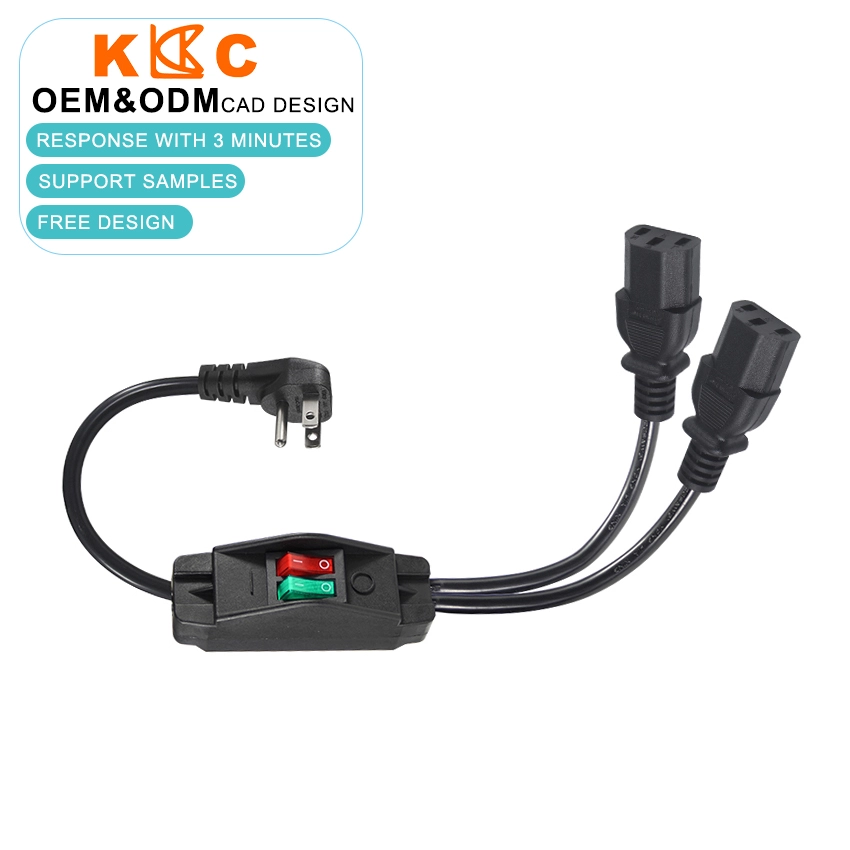

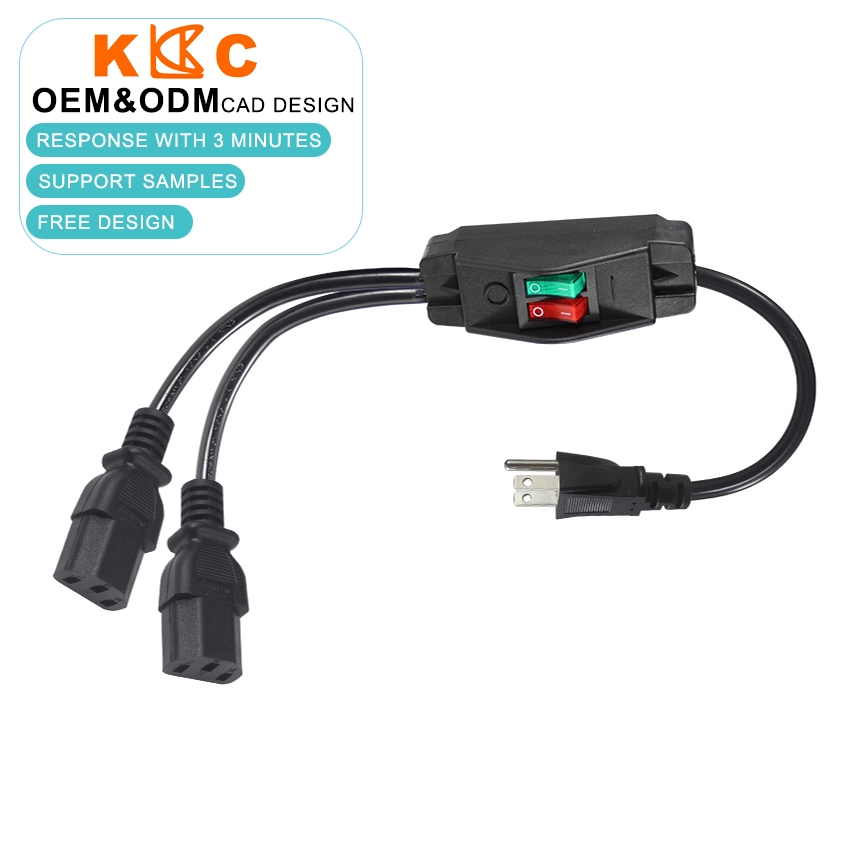

Managing dual-device IT setups demands precise control and physical durability. The NEMA 5-15P to Dual IEC C13 Power Splitter Cord incorporates an inline junction with independent red and green rocker switches, distributing a single wall outlet to two C13 inputs. Engineered with heavy-duty injection-molded strain reliefs (SR), it resists aggressive bending in tight server racks. Verified for 0.1% defect rates. It provides continuous 125V AC transmission for critical computing hardware.
Why Choose Our NEMA 5-15P to IEC C13 Splitter?
Designed for commercial IT environments where standard off-the-shelf splitters fail under continuous mechanical stress.
Independent Physical Switching
The central Y-junction houses two distinct mechanical rocker switches (color-coded red and green). This physical isolation allows system administrators to hard-reboot a single frozen server or monitor. You can cut power to device A without causing voltage sags or downtime on the parallel device B.
Injection-Molded Strain Relief (SR)
We integrate elongated, multi-ribbed strain reliefs at the base of the NEMA 5-15P plug, the C13 connectors, and the central switch housing. This structural reinforcement prevents the internal copper strands from snapping under high-angle tension. It drastically reduces premature cable failure rates in environments with frequent equipment reconfigurations.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Standard Classification | NEMA 5-15P to 2 x IEC 320 C13 |
| Voltage Rating | 125V AC |
| Current Capacity | 10A / 15A (Depending on AWG selection) |
| Wire Gauge Options | 16AWG / 14AWG Pure Copper |
| Jacket Material | Flame-retardant PVC (SJT) |
| Switch Configuration | Inline Mechanical Rocker (Red/Green) |
| Certifications | UL/cUL, RoHS, REACH |
Buyer's Insight: Most IT procurement managers encounter premature cable failure right at the junction block of standard Y-splitters. We solved this by over-molding the switch housing and applying extended SR designs. The color-coded switches also eliminate the "cable tracing guessing game" when a technician needs to reboot one specific monitor in a dual-display array.
Professional Applications You Can Trust
Server racks utilize high-density PDU ports. Dual-power supply (PSU) servers require two C13 inputs. Using this splitter, technicians can feed both PSUs from a single NEMA 5-15P outlet. The switches allow physical load-testing of each PSU independently during maintenance windows.
Commercial workstations typically pair a desktop tower with a primary display. This cord consolidates their power footprint. It removes the need for under-desk power strips, reducing tripping hazards and simplifying corporate IT deployments.
Advanced Safety Features
Electrical safety in IT deployments requires strict thermal management. The 14AWG/16AWG pure copper core minimizes resistance, keeping the jacket temperature well below safety limits even at a sustained 15A draw. The SJT-rated PVC jacket self-extinguishes upon ignition.
The rocker switches are mechanically rated for over 10,000 toggles. The internal contacts use specialized alloy plating to prevent micro-arcing when disconnecting active capacitive loads like PC power supplies.
Manufacturing Excellence
We operate with 17 years of cable manufacturing expertise. Each splitter assembly passes automated Hi-Pot testing and continuity checks before dispatch. Our engineering team provides initial CAD designs for customized projects within exactly 3 minutes of requirement confirmation.
Frequently Asked Questions
Q: Can the C13 connectors handle the starting inrush current of commercial servers?
A: Yes. When utilizing the 14AWG copper configuration, the assembly easily absorbs the brief high-amperage inrush current typical of ATX and server power supplies without triggering thermal degradation.
Q: Do the injection-molded SR components harden or crack in cold environments?
A: We formulate our PVC with specific plasticizers designed to maintain flexibility down to -20°C. The SR ribs will not crack under normal data center cooling airflows.
Q: What is the sample dispatch timeline for a custom cable length?
A: Off-the-shelf specifications ship within 3 business days. For customized wire lengths or tailored plug angles, we dispatch engineering samples within 7 business days following your CAD design approval.
Custom Solutions for Your Business
We build power architectures tailored to your hardware. Length & Branch Dimensions: Adjust the main trunk and dual C13 branches to perfectly match your specific rack spacing. Wire Gauge & Material: Upgrade to 14AWG for heavy continuous loads. Custom Molding: We can redesign the SR lengths or alter the plug mold to fit narrow enclosures. Certification Matching: We adapt plugs to match regional grid standards while retaining the dual C13 structure. Low MOQ Sampling: We support agile pilot runs for your new IT hardware rollouts.
Contact Us
✔ CAD Design in 3 Mins | ✔ OEM & ODM Support | ✔ Fast Sample Dispatch
Ready to discuss your NEMA 5-15P to Dual IEC C13 Power Splitter Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
