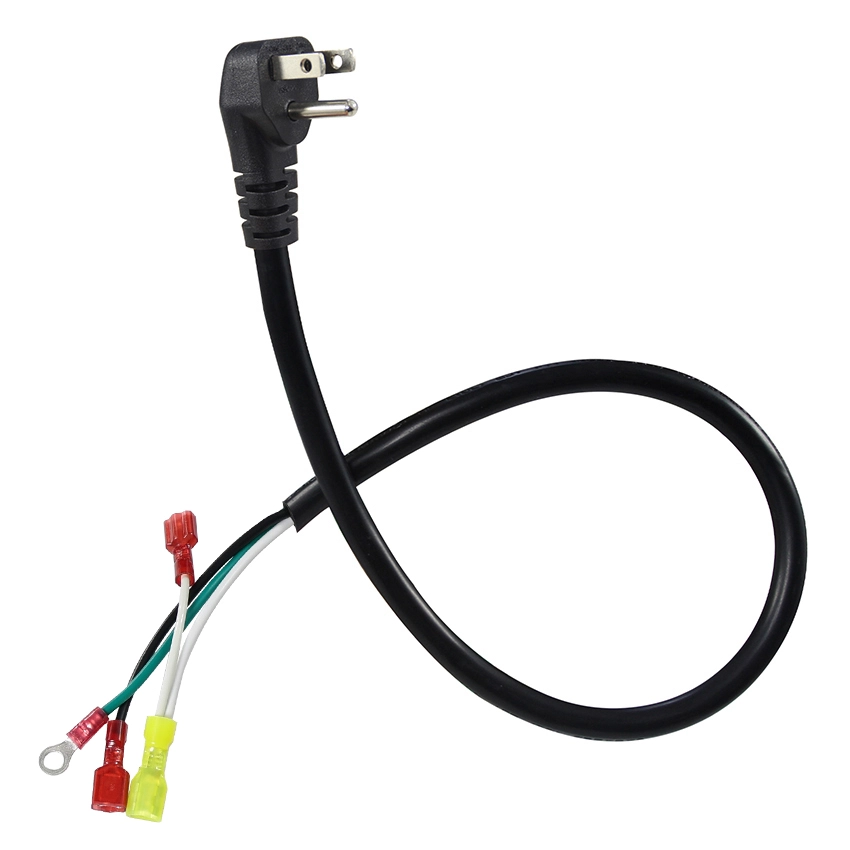

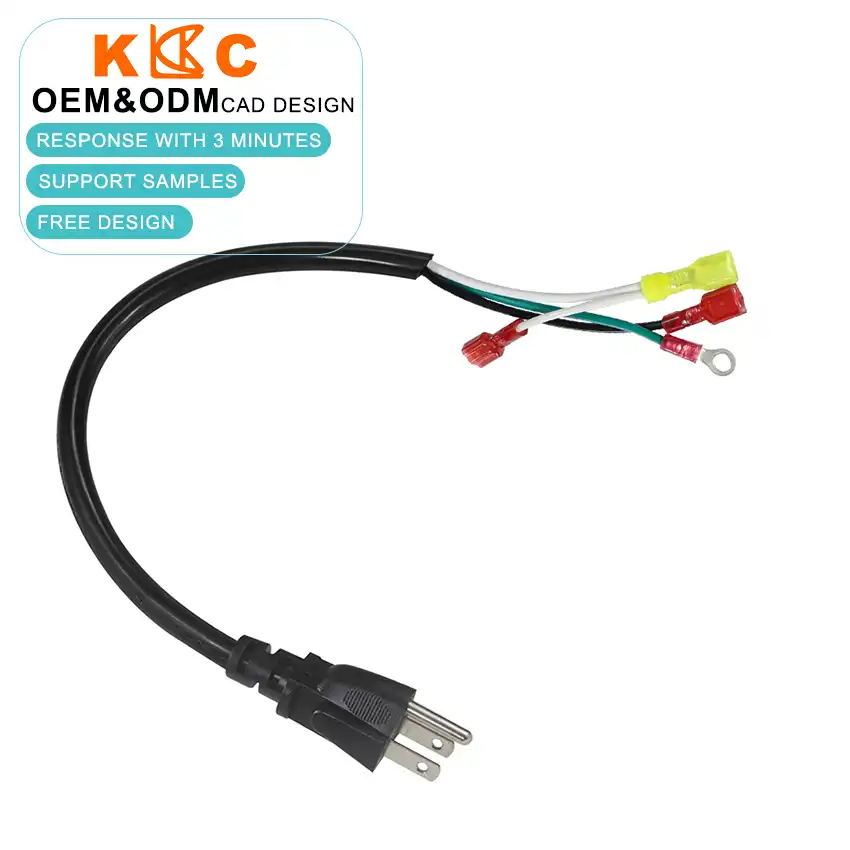

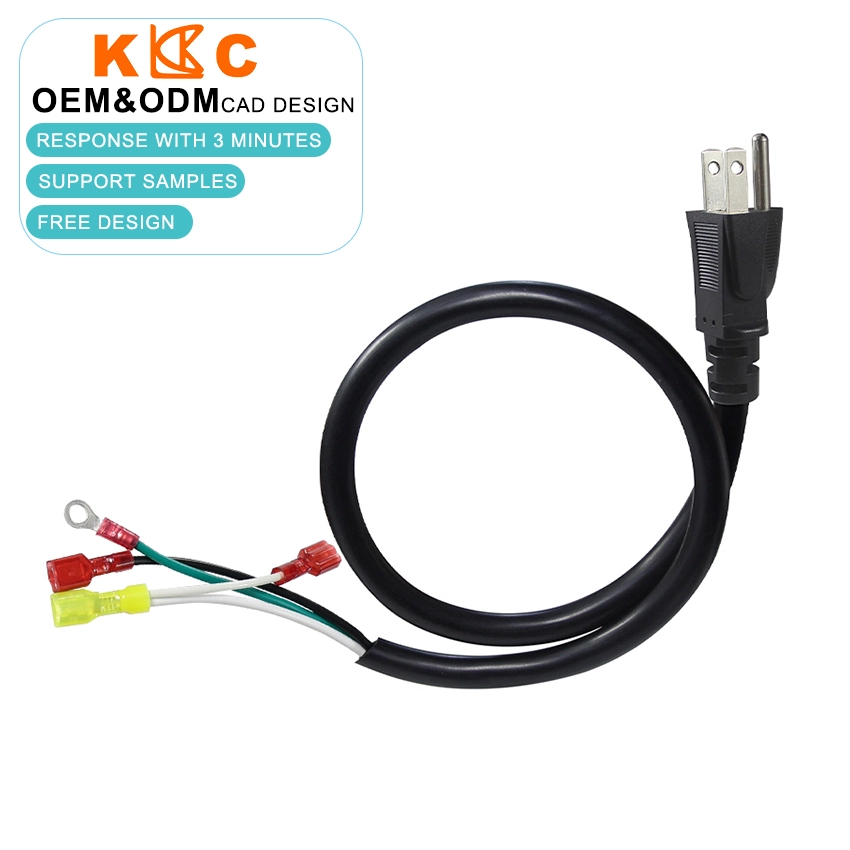

NEMA 5-15P to Crimp Terminals Pigtail Power Cord
Ready for Internal Equipment Wiring: The pigtail structure saves assembly time compared with manually stripping and terminating cord ends, making it suitable for OEM production, maintenance repair, and custom electrical module integration.
Grounded 3-Conductor Cable Structure: Built for line, neutral, and ground routing when produced with the correct conductor layout and approved specification, supporting equipment designs that require ground continuity.
Molded Plug and Strain Relief: The NEMA 5-15P plug can be manufactured with molded strain relief to reduce bending stress at the connector exit, helping protect the cable during handling, installation, and repeated service access.
Custom Terminal Configuration: Cord length, wire gauge, jacket type, stripped length, terminal type, crimp size, conductor color, plug shape, cable printing, packaging, and certification route can be customized according to buyer drawings.
- Product Description
NEMA 5-15P to Crimp Terminals Pigtail Power Cord for OEM Equipment Wiring
The NEMA 5-15P to Crimp Terminals Pigtail Power Cord is designed for equipment builders who need a North American grounded plug on one end and production-ready terminal leads on the other. The NEMA 5-15P plug connects to compatible 125V AC receptacles, while the crimped pigtail end connects directly to internal terminals, switches, relays, power modules, or control boards. No loose guessing at final assembly. The terminal details should follow the approved equipment drawing.
Why Choose Our NEMA 5-15P to Crimp Terminal Pigtail Cord?
This cord is built for OEM wiring work where the open end is not unfinished. It is pre-configured for a defined terminal connection, saving time during production and repair.
Pre-Crimped Terminal Leads Reduce Manual Termination Work
The output side can be supplied with crimp terminals matched to the buyer’s equipment interface. Instead of cutting, stripping, and crimping cord ends during assembly, technicians receive a cable ready for direct terminal connection.
The benefit is practical: fewer manual wiring steps, more consistent conductor preparation, and cleaner installation inside power modules, appliances, cabinets, or test fixtures.
NEMA 5-15P Plug Provides Standard Grounded US Power Input
The input side uses a NEMA 5-15P male plug, the standard grounded plug type for compatible North American 125V AC environments. It gives equipment builders a familiar power input while keeping the equipment side open for custom wiring.
For procurement teams, this combines market compatibility with internal wiring flexibility. One side standardized. One side engineered for your device.
Grounded 3-Conductor Structure Supports Equipment Safety Planning
The cord can be built with line, neutral, and ground conductors for compatible grounded equipment designs. Ground continuity should be confirmed through the final wiring diagram, terminal assignment, and production test requirement.
This is especially important for metal housings, control panels, appliance frames, and industrial modules where the ground conductor must terminate correctly. Do not rely on wire color alone. Confirm the terminal map.
Molded Strain Relief Helps Protect the Plug End
The NEMA 5-15P plug can be produced with injection-molded strain relief to help spread bending stress across the cable jacket. This reduces stress concentration where the cord exits the plug body.
For serviceable equipment and movable machines, the plug end may be pulled, coiled, packed, and reconnected many times. Controlled strain relief helps reduce avoidable cable-end damage.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | NEMA 5-15P to Crimp Terminals Pigtail Power Cord |
| Input Plug | NEMA 5-15P Male Plug, 3-Prong Grounded |
| Output End | Open End with Crimp Terminals / Pre-Terminated Pigtail Leads |
| Standard Classification | NEMA 5-15P to Crimp Terminal Pigtail Power Cord |
| Voltage Rating | 125V AC |
| Current Rating | Up to 15A, depending on wire gauge, terminal type, and certified configuration |
| Wire Gauge Options | 18AWG / 16AWG / 14AWG pure copper conductor options |
| Conductor Structure | Line / Neutral / Ground, according to approved wiring diagram |
| Cable Jacket | SJT / SVT / PVC jacket options |
| Terminal Options | Ring terminal, fork terminal, quick-disconnect terminal, ferrule, or custom crimp type by drawing |
| Customization Options | Cable length, wire gauge, stripped length, terminal type, crimp size, wire color, plug molding, cable printing, packaging |
| Certification Options | [Certification Options] |
Buyer's Insight: The terminal end is the key buying detail. “Open end” is not enough for production. Specify terminal type, wire strip length, crimp barrel size, insulation sleeve, conductor color, and terminal assignment. These details determine whether the cord can go straight onto your production line or needs rework before installation.
Professional Applications You Can Trust
For OEM equipment wiring, the most common pain point is inconsistent manual termination. A pre-crimped NEMA 5-15P pigtail cord helps production teams connect AC input wiring to terminal blocks, switches, or power modules with fewer preparation steps.
For appliance repair and replacement projects, technicians need a cord that matches both the wall-side plug standard and the internal terminal layout. Custom crimp terminals allow the cord to connect directly to existing equipment terminals when the drawing is confirmed.
For control panels and test fixtures, cable identification and terminal assignment matter. Wire color, labeling, terminal style, and strip length can be defined before production so installers are not forced to modify each cord on site.
Advanced Safety Features
The NEMA 5-15P plug supports grounded power input when paired with a proper three-conductor cable structure. The ground conductor must be routed to the correct terminal point according to the approved equipment design.
Crimp quality matters. The terminal must match conductor gauge, barrel size, insulation diameter, and pull-force requirement. Incorrect crimp selection can create loose connections, overheating risk, or field failure.
The molded plug and strain relief help protect the wall-side connection from repeated bending. The pigtail end should be mechanically secured inside the equipment housing so terminal stress is not carried by the crimp alone.
Manufacturing Excellence

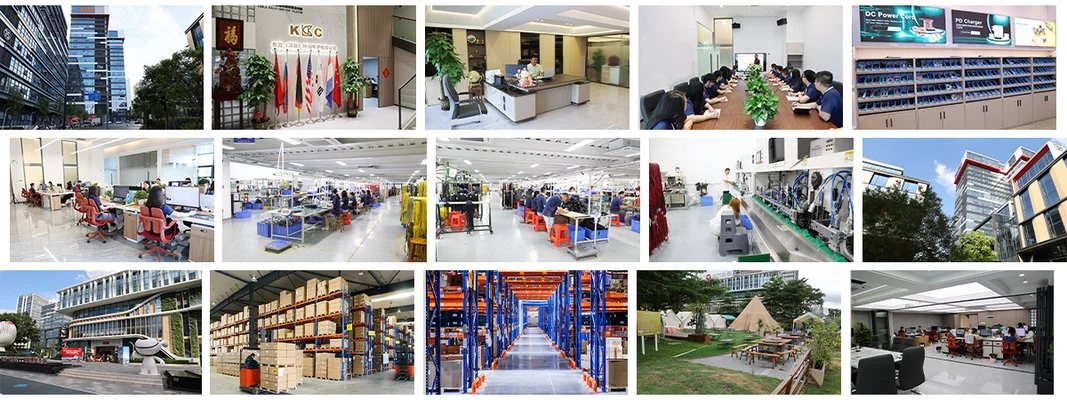

Our factory supports OEM and ODM production for custom pigtail power cords, including NEMA plugs, molded strain relief, pre-stripped leads, crimp terminals, wire color assignment, cable printing, packaging, and compliance documentation. Inspection scope, terminal pull-test requirements, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.
Frequently Asked Questions
Q: What terminal types can be supplied on the pigtail end?
A: Common options include ring terminals, fork terminals, quick-disconnect terminals, ferrules, or custom crimp terminals. The final terminal type should match the equipment terminal block, screw size, conductor gauge, and insulation requirement.
Q: Is this NEMA 5-15P pigtail cord grounded?
A: It can be manufactured as a grounded cord when built with line, neutral, and ground conductors. Ground continuity and terminal assignment should be confirmed in the final wiring diagram.
Q: Can wire colors and stripped lengths be customized?
A: Yes. Wire color, conductor length, stripped length, crimp terminal type, insulation sleeve, and cable markings can be customized according to your assembly drawing.
Q: What information is needed for a quotation?
A: Please provide cable length, wire gauge, jacket type, terminal type, crimp size, stripped length, wire color assignment, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.
Custom Solutions for Your Business
Terminal Customization: Select ring, fork, quick-disconnect, ferrule, insulated, or non-insulated terminals according to your equipment interface and assembly workflow.
Wire Preparation: Define conductor strip length, exposed copper length, crimp barrel size, insulation sleeve, conductor color, and terminal assignment before production.
Cable Length & Wire Gauge: Choose 18AWG, 16AWG, or 14AWG pure copper conductor options with the required cable length and jacket type for your equipment load and routing path.
Branding & Compliance Matching: Cable printing, molded logo, packaging labels, warning labels, and certification documents can be prepared according to your market and purchasing checklist.
Contact Us
✔ OEM & ODM Support | ✔ Custom Terminal Options | ✔ Pigtail Cord Assembly
Ready to discuss your NEMA 5-15P to Crimp Terminals Pigtail Power Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
