Nema 5-15P to 3X 5-15R Y Splitter Cord
Premium Wire Gauge & Electrical Rating: Built with high-quality 16AWG/14AWG oxygen-free copper conductors, supporting up to 13A/15A 125V (1625W/1875W) to ensure safe, stable current transmission with minimal voltage drop or overheating under continuous load.
Space-Saving Y-Splitter Design: The flexible 3-way breakout design efficiently manages messy cables and accommodates bulky power adapters or "wall warts" without blocking adjacent sockets, making it ideal for compact server rooms and workstations.
UL Certified Standards & Safety: Fully compliant with UL and cUL safety standards, featuring a rugged, flame-retardant PVC jacket that protects against abrasion, moisture, and direct sunlight for long-term commercial and industrial reliability.
Versatile Application Scenarios: Perfect for organizing power distribution in data centers, office setups, home theaters, stage audio-visual systems, and temporary outdoor events requiring a durable, multi-plug extension solution.
- Product Description
NEMA 5-15P to 3X 5-15R Y Splitter Cord: High-Density Power Distribution for Data Racks and Enclosures

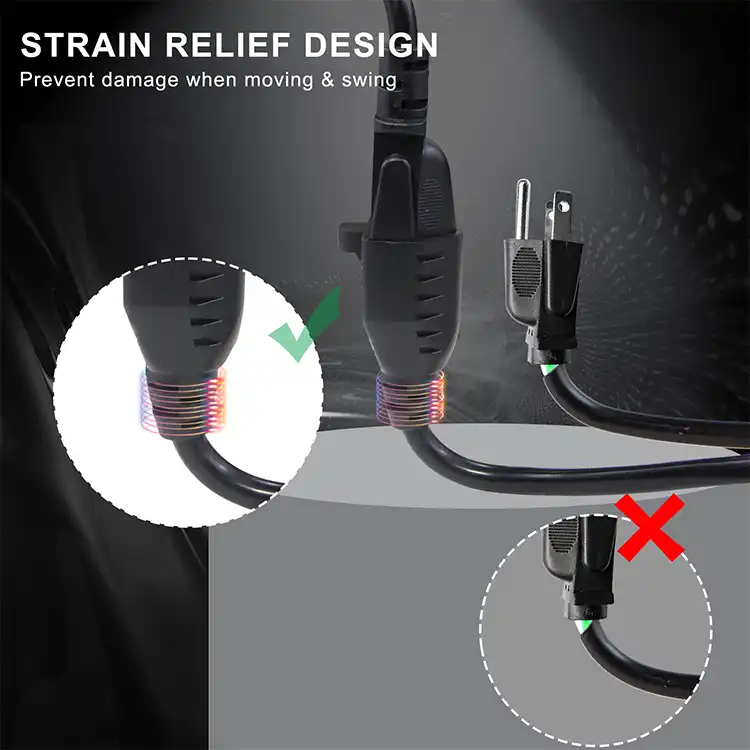

Managing limited PDU outlets requires dependable structural splitters. The NEMA 5-15P to 3X 5-15R Y Splitter Cord solves power congestion by multiplying a single 15A outlet into three independent receptacles. Built by Dongguan Kuncan Electronics Co., Ltd. with heavy-duty molded strain reliefs. Fully UL listed. This assembly maximizes cable management efficiency in server enclosures and industrial stages.
Why Choose Our NEMA 5-15P to 3X 5-15R Y Splitter Cord?
Industrial power distribution demands zero failures. We optimize every copper strand and molding junction to handle continuous loads safely.
Pure Copper Conductors with Zero Gauge Compromise
We use 100% oxygen-free bare copper. No copper-clad aluminum (CCA) alternatives. This guarantees minimum electrical resistance. It eliminates localized overheating under high current draws. Your hardware gets clean, stable voltage over extended operational cycles.
Integrated Molded Solid Junction Block
The splitter breakout point utilizes an integrated solid PVC molding. This eliminates internal wire friction. It prevents short circuits caused by mechanical pulling or twisting. Standard snap-together plastic casings fail under stress; our solid-molded architecture does not.
Complete Product Specifications
| Parameter | Specification |
|---|---|
| Plug Type | NEMA 5-15P Standard Grounded Male Plug |
| Receptacle Type | 3x NEMA 5-15R Grounded Female Outlets |
| Cable Type | SJT / SJTW Heavy Duty Thermoplastic |
| Conductor Gauge | 14 AWG / 16 AWG Options Available |
| Electrical Rating | 15A / 125V AC Max Load |
| Junction Design | Solid-Molded PVC Overmolded Y-Splitter |
| Certifications | UL, cUL, RoHS Compliant |
Professional Applications You Can Trust
Data center server racks rely on these splitters to power multiple redundant power supplies from a single rack PDU outlet. This saves valuable PDU real estate and optimizes cable routing pathways.
Stage lighting and audio-visual engineering setups require fast, clean deployment. The heavy-duty jacket resists abrasion from heavy foot traffic and equipment carts during live event turnarounds.
Industrial automation control panels use this configuration to feed power to peripheral sensors, cooling fans, and small programmable logic controllers (PLCs) simultaneously inside tight enclosure footprints.
Advanced Safety Features
The outer jacket uses heavy-duty SJT or SJTW thermoplastic vinyl insulation. It resists oil, acids, and moisture. It is rated for 105°C temperature thresholds to survive harsh factory floors.
Each receptacle features an exact internal spring-loaded brass contact sleeve. This ensures high retention force. Plugs stay seated. Vibration will not shake connections loose, preventing intermittent arcing.
Dielectric voltage-withstand testing is performed on every production run. We verify insulation integrity up to 2000V AC to guarantee zero leakage currents.
Manufacturing Excellence
Dongguan Kuncan Electronics Co., Ltd. brings 17 years of specialized expertise to B2B wire harness assembly. Our production lines enforce a mandatory 100% factory test regime covering continuity, polarity, and high-potential insulation safety. We process only verified, compliant raw materials to guarantee structural longevity and total stability across your entire supply chain.
Frequently Asked Questions
Q: How can our procurement department request a NEMA 5-15P to 3X 5-15R Y Splitter Cord quotation?
A: Please email your exact Bill of Materials (BOM) specifying total length, wire gauge (14AWG or 16AWG), and estimated order volume. We issue precise pricing based on current raw material spot markets rather than inflated retail markups.
Q: Is this splitter suitable for outdoor wet environments?
A: For moisture-exposed environments, we supply the cord utilizing an SJTW weather-resistant jacket. Inform our team during the quoting phase so we can adjust the polymer compound to meet your environmental requirements.
Q: Can the leg lengths of the Y-split be customized?
A: Yes. We can modify the dimensions of both the primary trunk and the three individual split legs to match your specific enclosure or equipment layout configurations.
Custom Solutions for Your Business
We adapt our manufacturing templates to your engineering requirements. Whether your design requires specific custom wire lengths, custom color coding, or specialized stripping for terminal blocks, our engineering team handles it. We maintain standard B2B production lead times of 15-21 days following first-article approval. Submit your technical drawings to receive an optimized quotation tailored for your production timeline.
Contact Us
Ready to discuss your NEMA 5-15P to 3X 5-15R Y Splitter Cord requirements? contact us at rhea@szkuncan.net for expert guidance and competitive pricing.
