NEMA 5-15P Flanged Inlet to 3-Way NEMA 5-15R Power Splitter Cable with Dust Covers

Why Choose Our NEMA 5-15P Flanged Inlet Splitter Cable?

This product is not just a standard extension cord. It is a panel-integrated power distribution cable for OEM equipment, display systems, power boxes, and controlled installation environments.

Flanged NEMA 5-15P Inlet Creates a Fixed Power Entry Point

The NEMA 5-15P flanged inlet is designed for mounting on a panel, cabinet wall, power box, or equipment enclosure. Instead of leaving the input plug floating outside the assembly, the flange provides a defined connection position.

That matters during assembly and field maintenance. Technicians know exactly where the power input sits, cables move less during transport, and the finished product looks cleaner to the end customer.

3-Way NEMA 5-15R Output Layout Reduces Internal Wiring Complexity

The cable splits one 125V AC input into three NEMA 5-15R female receptacles. Each outlet branch can be routed toward a different device position, such as a display controller, small power adapter, testing instrument, or auxiliary module.

For OEM buyers, this reduces the need for separate outlet strips, extra adapters, and multiple short jumper cords. One assembly handles the routing. Easier to install. Easier to inspect.

Dust Covers Help Protect Unused Female Receptacles

The NEMA 5-15R receptacles can be supplied with tethered dust covers. When an outlet branch is not connected, the cover helps reduce dust, debris, and storage contamination around the contact area.

This is useful for mobile cabinets, demonstration equipment, temporary displays, and seasonal systems where not every outlet is used at the same time. The attached cover stays with the cable, so operators are less likely to lose it during setup.

Grounded Cable Structure Supports Safer Equipment Integration

Because both the inlet and outlet standard are from the NEMA 5-15 family, this splitter can be built as a grounded power cable assembly when specified with the correct conductor structure and approved configuration.

For equipment using metal housings, IT hardware, test benches, or grounded adapters, buyers should confirm ground continuity, wire gauge, jacket type, and certification route before production. Do not guess here. Confirm the drawing.

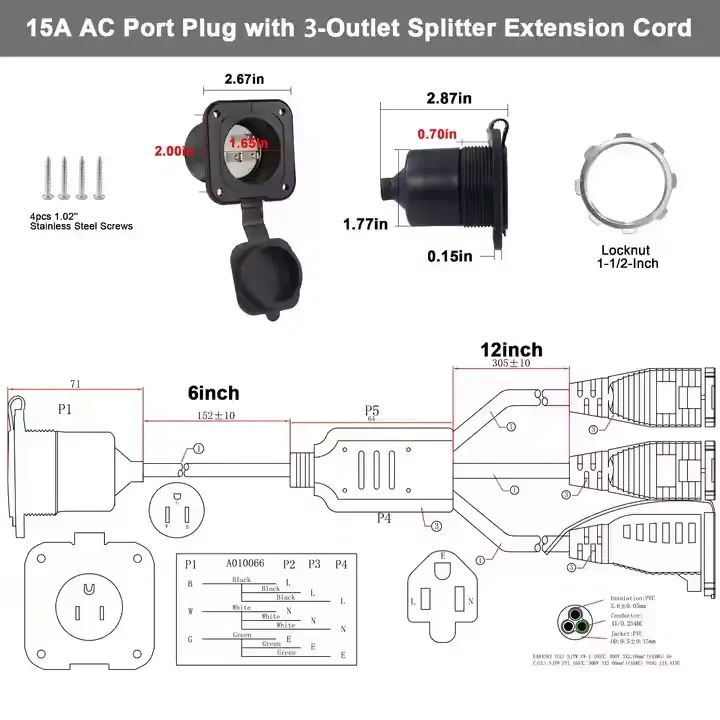

Complete Product Specifications

Buyer's Insight: The important detail is the flanged inlet. A normal plug-end splitter is loose and moves with the cable. A flanged NEMA 5-15P inlet creates a fixed power entry point, which is better for cabinets, equipment housings, and products that need repeatable assembly. If your design requires the power input to be screwed into a panel, this structure is the right direction.

Professional Applications You Can Trust

For equipment enclosures, the main pain point is cable movement during transport and maintenance. A loose input cable can be pulled, twisted, or routed incorrectly. The flanged NEMA 5-15P inlet gives the enclosure a fixed power entry interface, while the three NEMA 5-15R branches distribute power inside the system.

For rack-mounted or cart-mounted systems, technicians often need several accessible outlets from one defined input point. This 3-way splitter cable helps route power to adapters, controllers, monitors, or test devices without mounting a bulky power strip inside the available space.

For display cabinets and demo units, unused outlets may collect dust during storage or partial deployment. The dust cover option helps protect idle receptacles, making the cable more suitable for reusable commercial setups.

Advanced Safety Features

The NEMA 5-15P to NEMA 5-15R configuration is intended for grounded 125V AC power distribution when manufactured with the correct conductor design. Ground continuity should be verified according to the final drawing, certification requirement, and buyer-side application.

The flanged inlet helps reduce accidental movement at the power entry point. This is useful where the input connection must remain aligned with a panel opening, label area, or equipment interface.

The female dust covers are protective caps for unused receptacles. They help reduce dust and debris entry, but they should not be described as waterproof covers unless a separate weather-rated structure is specified and tested.

Manufacturing Excellence

Our factory supports OEM and ODM manufacturing for custom power cord assemblies, including flanged inlets, splitter junctions, molded receptacles, dust cover structures, cable printing, and project packaging. Inspection and documentation can be arranged according to your target market, certification requirements, and internal quality checklist. For exact production capability, testing scope, and compliance files, please confirm with our sales engineer before bulk order confirmation.

Frequently Asked Questions

Q: Is this cable grounded?

A: It can be manufactured as a grounded splitter cable because the standard configuration uses a NEMA 5-15P inlet and NEMA 5-15R receptacles. Ground continuity must be confirmed in the final approved drawing and certified configuration.

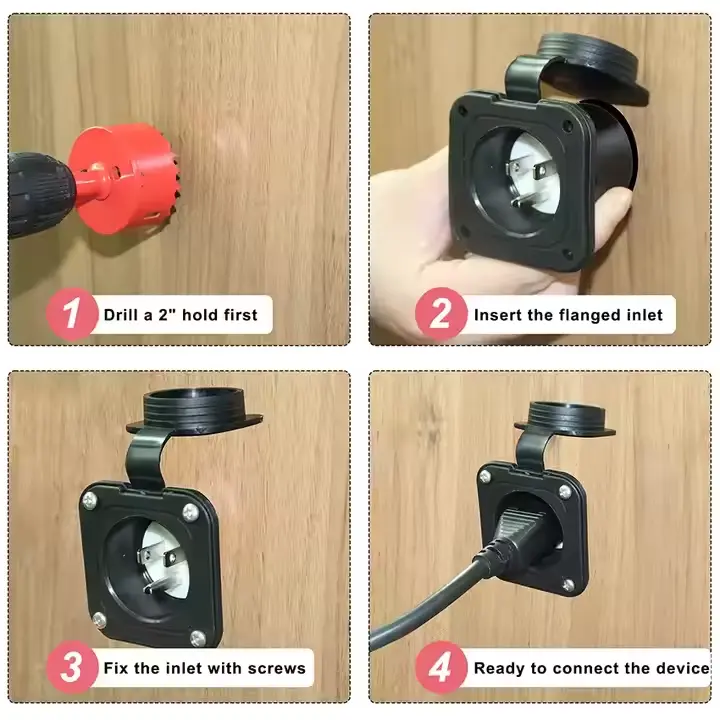

Q: Is the flanged NEMA 5-15P inlet suitable for panel mounting?

A: Yes. The flanged inlet is intended for fixed mounting on equipment panels, power boxes, display cabinets, or custom housings. Buyers should provide panel cutout requirements, screw-hole spacing, and orientation needs before production.

Q: Are the NEMA 5-15R dust covers waterproof?

A: No. The standard dust covers help reduce dust and debris entry when receptacles are unused. They should not be treated as waterproof locking covers. For outdoor or wet-location use, request a weather-rated structure.

Q: Can the three output branches have different lengths?

A: Yes. The three branch lengths, trunk wiring layout, receptacle spacing, wire gauge, jacket color, and molded housing details can be customized. Sample dispatch timeline and MOQ should be confirmed after the final drawing and material selection are approved.

Custom Solutions for Your Business

Flanged Inlet Customization: Adjust the inlet flange shape, mounting hole position, outlet direction, panel fit, and molded housing size according to your equipment enclosure design.

Branch Length Customization: Define the length of each NEMA 5-15R branch so the cable reaches different internal device positions without leaving excess wire inside the cabinet.

Wire Gauge & Jacket Selection: Choose 18AWG, 16AWG, or 14AWG conductor options with PVC jacket configurations based on current rating, flexibility, and target certification.

Branding & Compliance Matching: Cable printing, molded logos, packaging labels, and certification documentation can be prepared according to your market and purchasing checklist.
