NEMA 1-15P to Right Angle IEC320 C7 Power Cord for Compact Non-Grounding Equipment

Why Choose Our NEMA 1-15P to Right Angle IEC320 C7 Power Cord?

This product is built for buyers who need correct connector matching, clean rear-panel routing, and a non-grounding cable structure for compatible Class II equipment.

Right Angle IEC C7 Connector Reduces Rear-Panel Clearance Pressure

The IEC320 C7 female connector uses a right-angle molded body, allowing the cable to exit close to the connected device instead of projecting straight backward. This is useful when the equipment sits near a wall, cabinet panel, shelf backboard, or mounting bracket.

The benefit is simple: less connector protrusion and less forced bending. For installers, that means cleaner routing behind audio devices, set-top boxes, projectors, chargers, and compact office electronics.

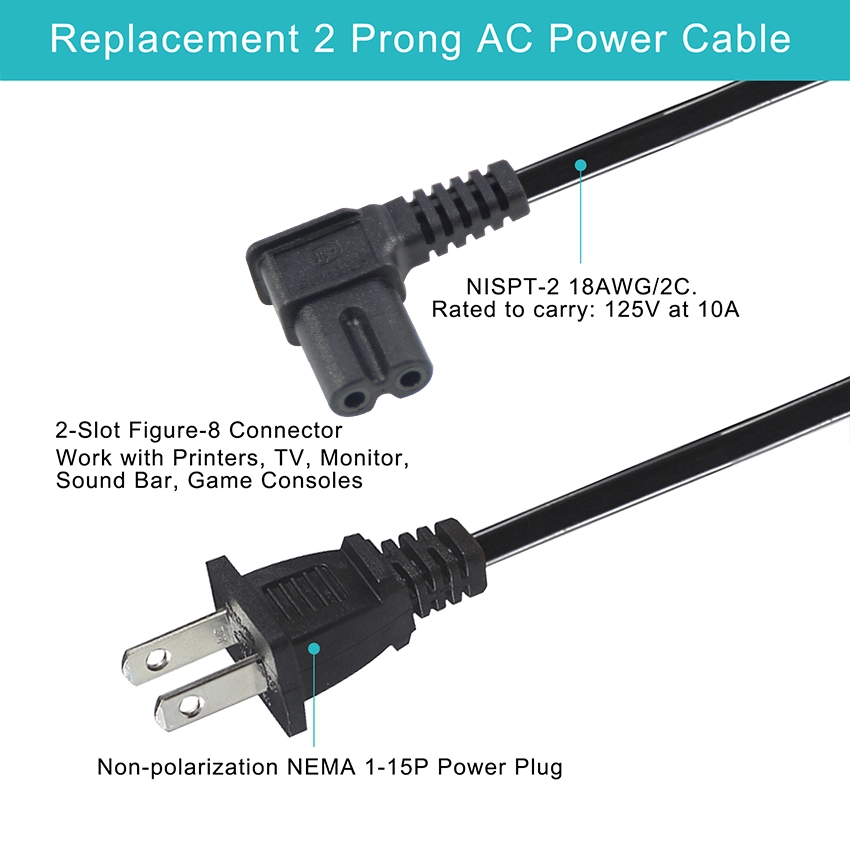

NEMA 1-15P 2-Prong Plug Matches Non-Grounding US Power Applications

The input side uses a NEMA 1-15P male plug with two flat blades and no grounding pin. This makes the cable suitable for compatible equipment designed for non-grounding power input.

For procurement teams, this avoids a common specification error. If the device is double-insulated and uses an IEC C8 inlet, a NEMA 1-15P to C7 cord is usually the correct connector family. If the equipment requires grounding, choose a NEMA 5-15P to grounded IEC connector instead.

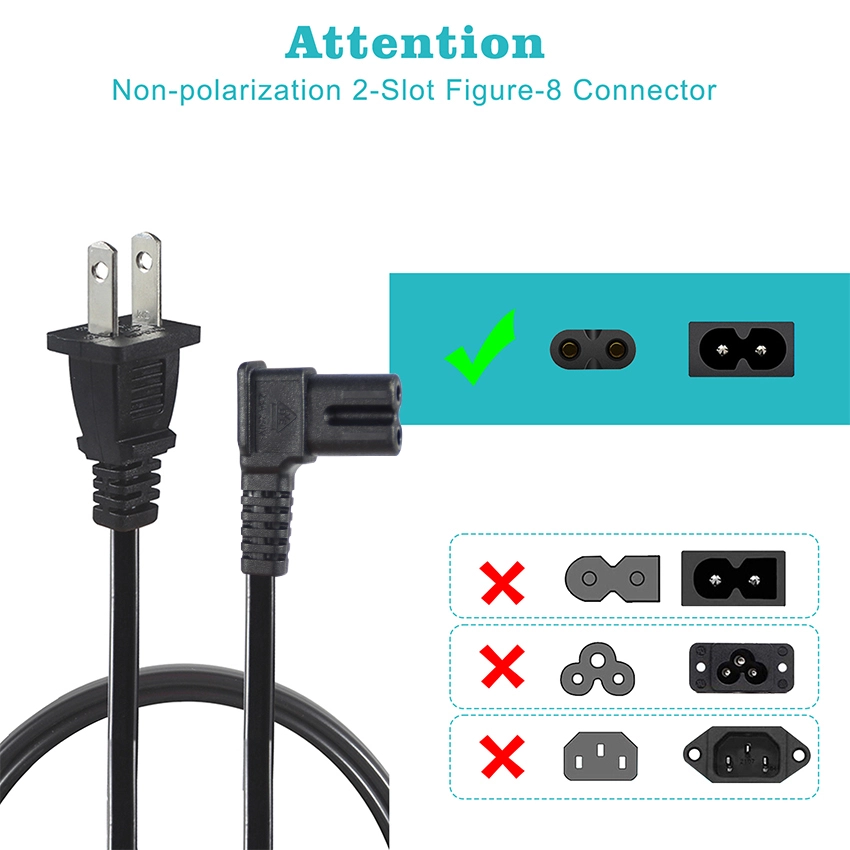

IEC C7 Figure-8 Connector Supports Compatible C8 Appliance Inlets

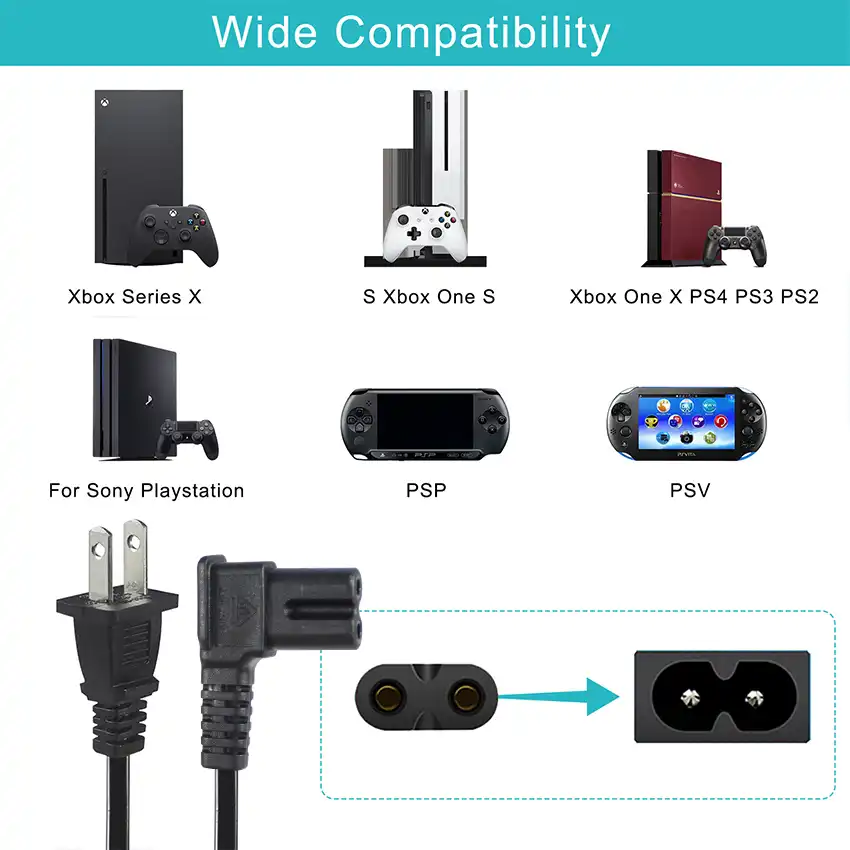

The IEC C7 connector is often called a figure-8 connector because of its compact 2-pole shape. It is designed to mate with IEC C8 appliance inlets commonly found on small electronics and power adapters.

Small detail. Big impact. Choosing C7 instead of C13 or C17 prevents connector mismatch, reduces sourcing errors, and helps buyers keep their BOM aligned with the actual equipment inlet.

Molded Strain Relief Helps Protect Cable Exit Points

The NEMA plug end and right-angle C7 connector can be manufactured with molded strain relief. These transition sections help distribute bending force along the cable jacket rather than concentrating stress at the connector exit.

This matters when cables are routed behind shelves, packed with devices, coiled during storage, or handled repeatedly during installation and service.

Complete Product Specifications

Buyer's Insight: The key selection point is the equipment inlet. IEC C7 is the female cord connector that mates with IEC C8. It is not a grounded C13 connector, and it is not a high-temperature C15 connector. If the drawing shows a compact 2-pole C8 inlet and the device does not require grounding, this NEMA 1-15P to right angle C7 structure is the correct direction.

Professional Applications You Can Trust

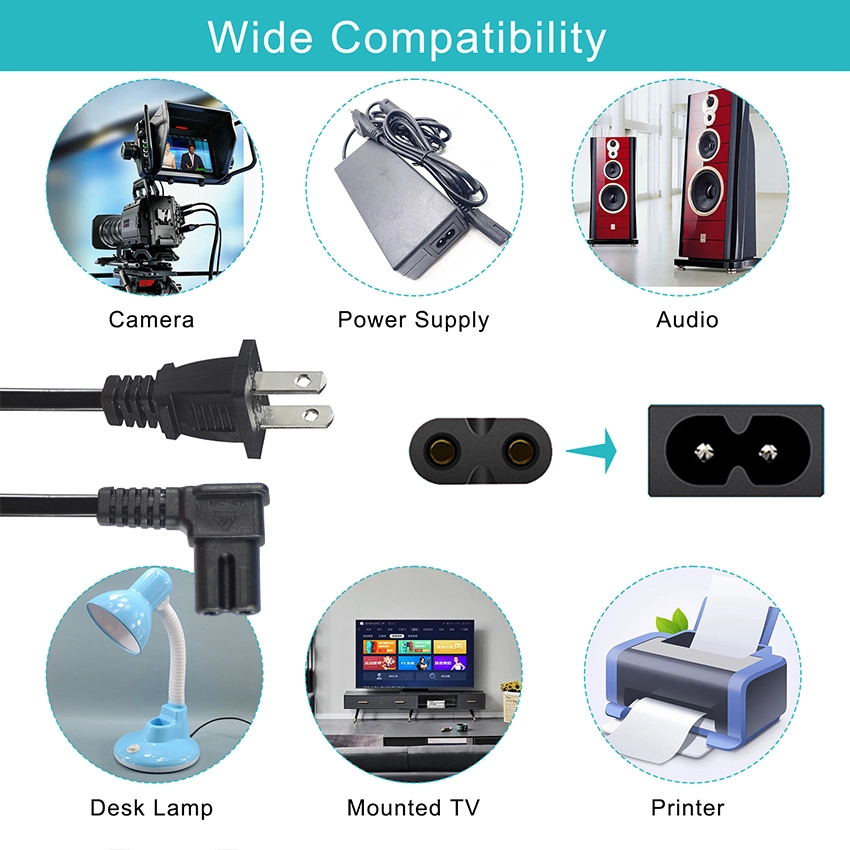

For audio equipment and compact consumer electronics, rear clearance is often limited by shelves, TV cabinets, or wall-mounted furniture. The right-angle C7 connector helps keep the cable close to the device body, reducing visible cable loops and pressure on the inlet.

For office electronics, chargers, printers, and small adapters, buyers need a lightweight non-grounding cord that matches the device inlet without overbuilding the connector. The NEMA 1-15P to C7 structure fits compatible 2-pole devices and keeps cable routing simple.

For OEM projects, connector orientation affects the final assembly. A right-angle C7 connector can help avoid interference with enclosure walls, battery compartments, mounting brackets, or rear covers when the product is fully assembled.

Advanced Safety Features

This is a non-grounding power cord structure. It should only be used for equipment designed and approved for 2-pole operation without an earth conductor. Do not use it as a substitute for grounded NEMA 5-15P to IEC C13 systems.

The right-angle connector improves physical routing, but it does not change the electrical rating by itself. Buyers should confirm wire gauge, cable length, jacket type, connector rating, and certification route before production approval.

Molded strain relief helps reduce bending stress at the plug and C7 connector exits. This is especially useful when the cord must fit behind compact devices or pass through tight cabinet openings.

Manufacturing Excellence

Our factory supports OEM and ODM production for custom non-grounding power cord assemblies, including NEMA 1-15P plugs, straight or right-angle IEC C7 connectors, molded strain relief, jacket selection, cable printing, packaging, and compliance documentation. Inspection scope, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.

Frequently Asked Questions

Q: Is this NEMA 1-15P to IEC C7 power cord grounded?

A: No. NEMA 1-15P is a 2-prong non-grounding plug, and IEC C7 is a 2-pole figure-8 connector. Use this cable only with equipment designed for non-grounding power input.

Q: What equipment inlet does IEC C7 connect to?

A: IEC C7 is the female cord connector that mates with IEC C8 appliance inlets. Buyers should confirm the device inlet shape before ordering, especially when replacing an existing cord.

Q: Why choose a right-angle IEC C7 connector instead of a straight C7?

A: A right-angle C7 connector reduces rear-panel protrusion and helps route the cable closer to the device. It is useful behind wall-adjacent electronics, shelves, cabinets, and compact equipment housings.

Q: What information is needed for a quotation?

A: Please provide cable length, wire gauge, jacket material, C7 angle direction, plug molding requirement, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.

Custom Solutions for Your Business

Connector Direction Customization: Choose straight or right-angle C7 orientation according to the device inlet direction, rear-panel clearance, and installation route.

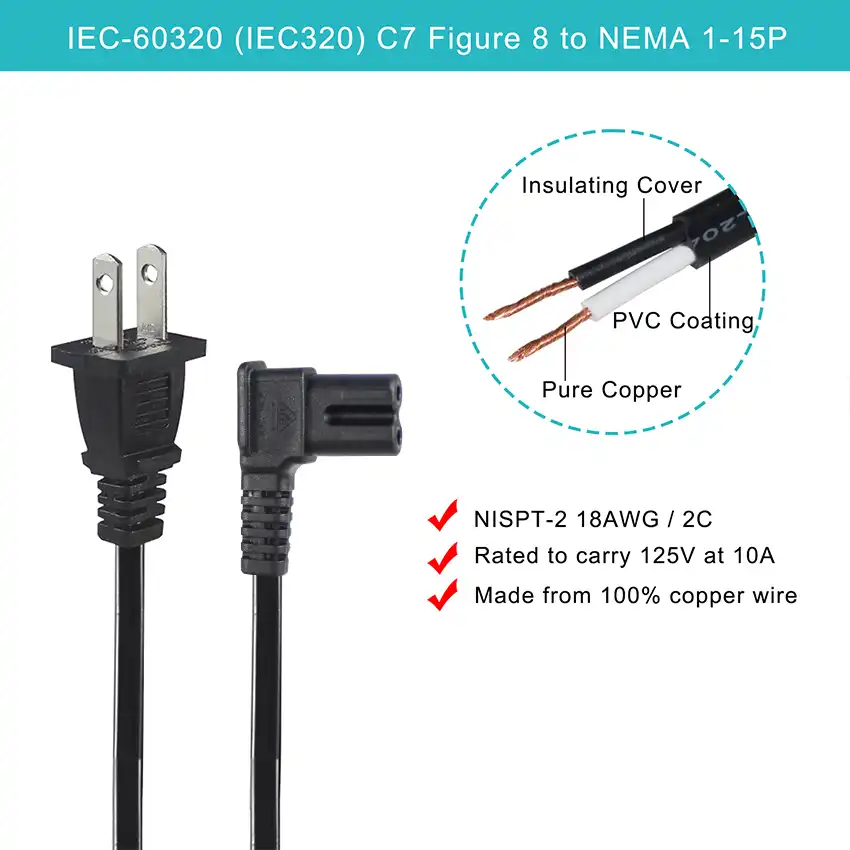

Cable Length & Wire Gauge: Define cable length and select 18AWG or 16AWG pure copper conductor options according to flexibility, load requirement, and certification route.

Custom Molding: Adjust the NEMA 1-15P plug shape, C7 connector housing, strain relief length, cable exit direction, and molded logo to match your equipment design.

Certification Matching: Cable markings, compliance documents, packaging labels, and test requirements can be prepared according to your target market and purchasing checklist.
