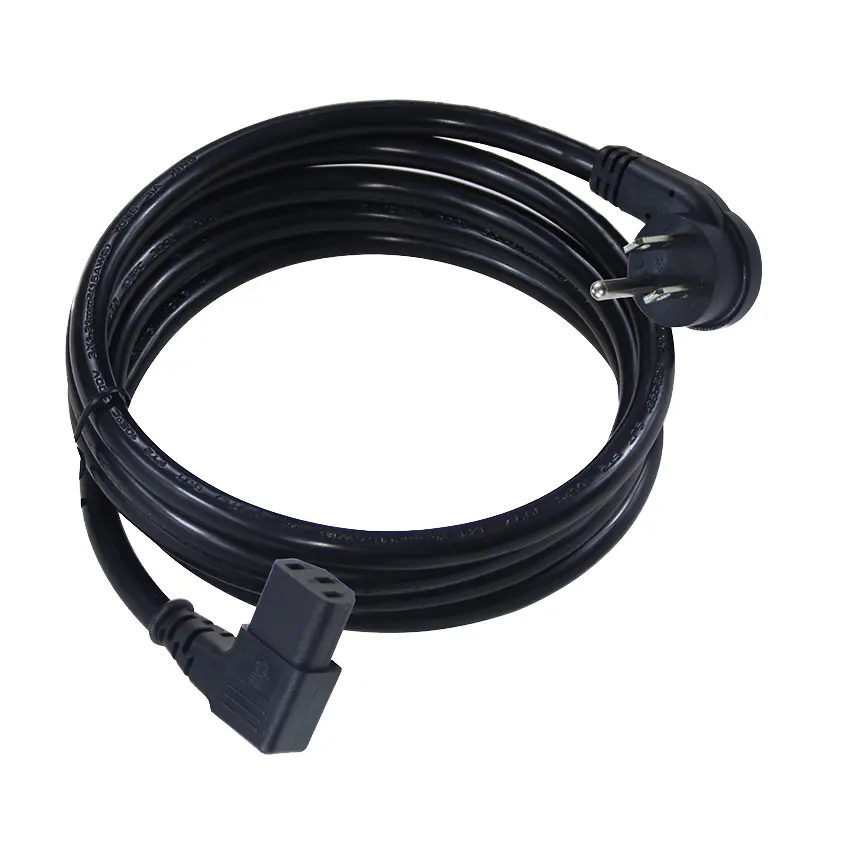

Dual Right Angle NEMA 5-15P to IEC C13 Power Cord for Tight Space Installations

Why Choose Our Dual Angled Power Cord?

Standard straight cables dictate how close equipment can be placed to a wall or cabinet door. For AV installers, IT rack builders, and machinery OEMs, a straight plug often means crushed wires or wasted floor space. This dual elbow design solves clearance issues on both ends simultaneously.

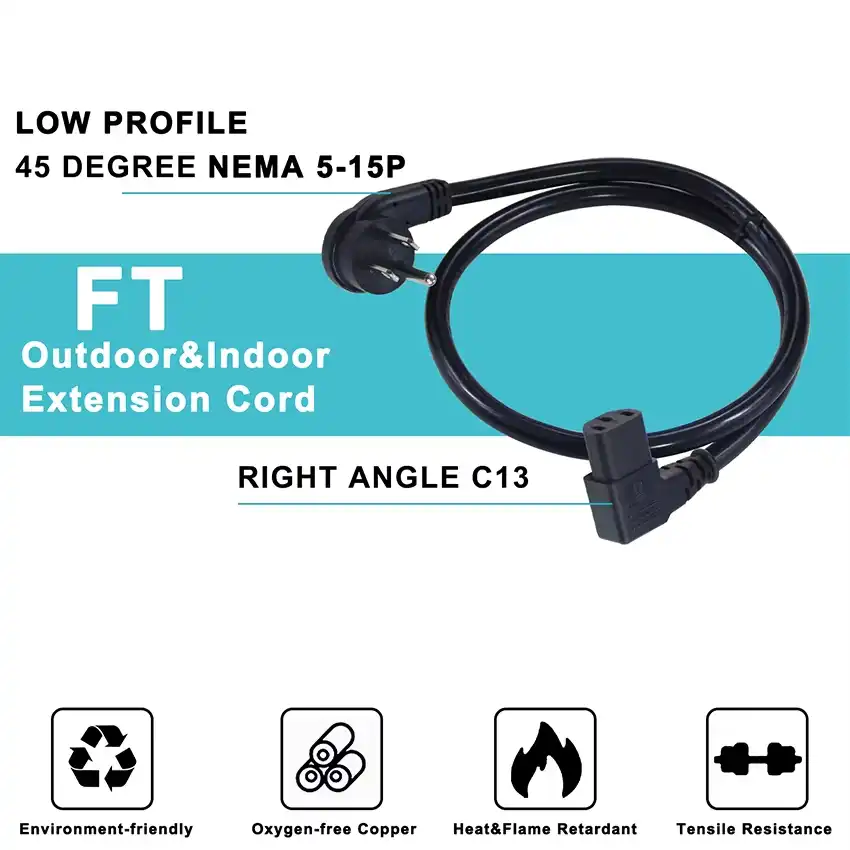

Low-Profile Flat Plug → Flush Wall Connection → Prevents Outlet Strain

The 90-degree NEMA 5-15P plug routes the cable parallel to the wall immediately upon exiting the socket. This prevents heavy desks, racks, or AV cabinets from crushing the plug body and straining the wall receptacle.

For end-users and installers, this eliminates the need to carve out deep recesses in drywall or leave awkward gaps between furniture and the wall just to accommodate a bulky straight plug.

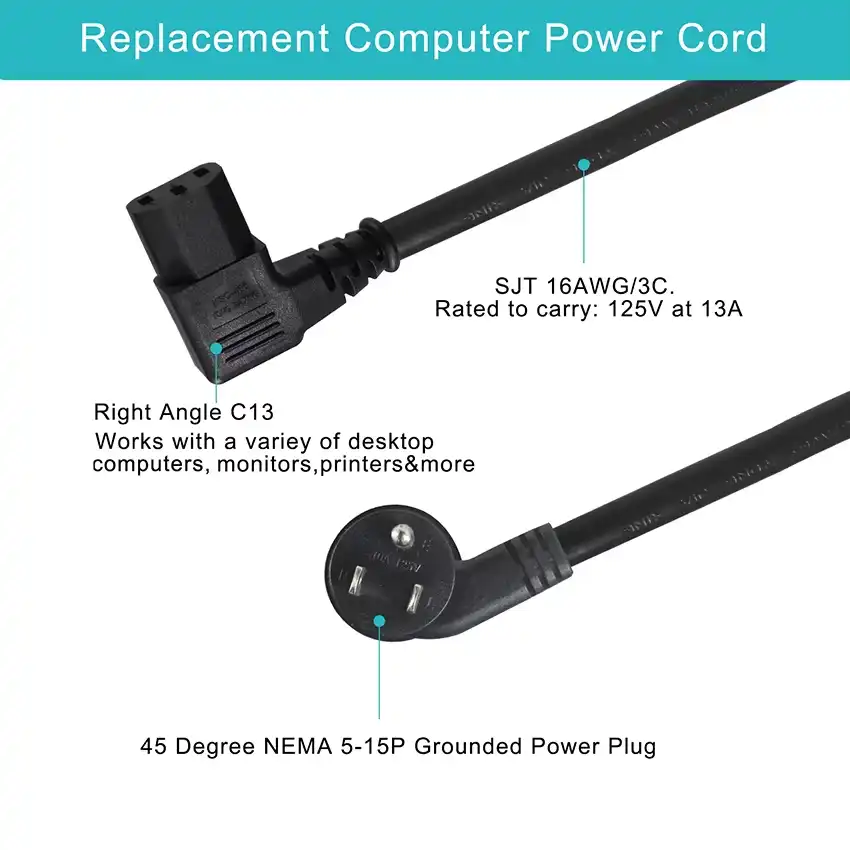

Right Angle IEC C13 Connector → Zero-Depth Equipment Input → Protects Internal Pins

At the equipment side, the 90-degree C13 connector drops the cable straight down (or side/up, depending on chassis orientation) rather than sticking out 2-3 inches. When a monitor is mounted on a slim VESA bracket, or a server is pushed deep into a rack, a straight C13 will inevitably bend sharply against the back panel.

This molded elbow structure absorbs the routing stress, protecting the equipment's internal power supply pins from lateral torque and reducing long-term electrical faults.

Heavy-Duty Strain Reliefs → Mechanical Durability → Lower Field Failure Rates

Both 90-degree transitions are reinforced with deep-ribbed, factory-molded strain reliefs. Sharp routing angles naturally create leverage against the wire terminations. The molded PVC absorbs this kinetic energy.

For B2B buyers, this translates to a cord that survives repeated movement in medical carts, AV racks, and industrial enclosures without snapping internal copper conductors.

Complete Product Specifications

Buyer's Insight: The most common mistake when ordering right-angle C13 cords is ignoring the equipment's port orientation. "Down" on one chassis might be "Left" on another, depending on how the C14 inlet is mounted. Furthermore, standard right-angle NEMA 5-15P plugs usually direct the cable downwards at a wall outlet. Before placing a bulk order, visually confirm the orientation of both the wall socket and your equipment's C14 pins to ensure the cable exits in the exact direction your routing path requires.

Professional Applications You Can Trust

For AV installations and digital signage, slim wall mounts look great until a bulky straight power cord pushes the screen two inches away from the wall. This dual right-angle cord solves the problem entirely: the flat NEMA plug sits flush against the wall outlet, and the C13 drops parallel to the display's back panel.

For IT server racks and network cabinets, depth is always at a premium. PDU doors often won't close if straight plugs are used. A low-profile 5-15P clears the PDU door, while the right-angle C13 prevents the server's power supply from being jammed against the rear rack rails.

For desktop PCs and mobile workstations, equipment is often pushed hard against walls or modesty panels. The low-profile connections ensure that shifting furniture won't accidentally leverage the power cord out of its socket or bend the pins.

Advanced Safety Features

Both the NEMA 5-15P plug and the C13 connector feature a full grounding path (the third pin/wire). Maintaining this earth ground is critical for operator safety, especially in metal-chassis industrial, IT, or medical equipment, preventing electric shock in the event of a short circuit.

The SJT PVC jacket is specified for standard North American indoor use, providing excellent flexibility while resisting moderate abrasion. The molded connector junctions ensure that no internal copper strands are exposed to moisture or dust, significantly reducing the risk of internal arcing.

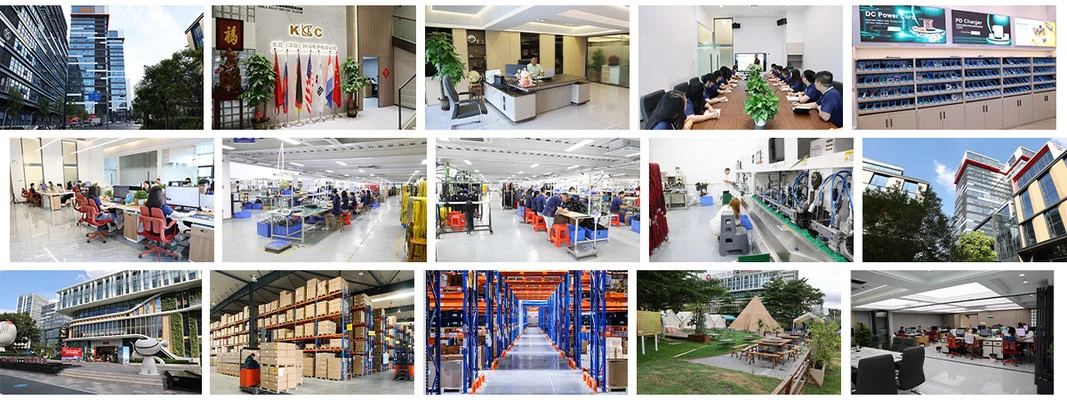

Manufacturing Excellence

With 17 years of specialized power cord manufacturing, we don't just assemble cables; we engineer reliable power paths. Every dual elbow cord undergoes strict factory testing, including high-voltage insulation tests, polarity verification, and continuous grounding checks, ensuring reliable 125V performance out of the box.

Our injection molding processes ensure that both 90-degree transitions are structurally sound, free from air pockets or weak points that plague cheaper, hand-assembled connectors.

Frequently Asked Questions

Q: How do I know if I need a left, right, up, or down angled C13 connector?

A: Look at the C14 inlet on your equipment. Note the position of the center ground pin. Then, determine which direction the cable needs to travel (e.g., towards the floor). We can supply C13 molds that exit in any of the four orientations relative to that ground pin.

Q: What wire gauge (AWG) should I select for this US cord?

A: For standard monitors and low-draw AV equipment, 18AWG is usually sufficient (rated up to 10A). For desktop PCs, servers, or heavy machinery, stepping up to 16AWG (13A) or 14AWG (15A) is required to maintain full capacity and minimize voltage drop over longer distances.

Q: Does the flat NEMA 5-15P plug block the lower outlet on a standard duplex wall receptacle?

A: A standard downward-angled NEMA 5-15P plug is designed to be plugged into the top receptacle of a standard US duplex outlet, allowing the cable to drop down without blocking the bottom receptacle. If plugged into the bottom, it may interfere with the space below it, depending on the baseboard.

Q: What is the sample dispatch timeline for a custom-angled cord?

A: If you require a standard 90-degree C13 mold and flat 5-15P plug that matches our existing tooling, samples can be dispatched rapidly. If your chassis requires a highly specific exit angle or custom jacket color, the timeline will be confirmed during the initial drawing review.

Custom Solutions for Your Business

Specific Connector Orientations: We hold tooling for multiple C13 exit angles. Whether you need the cable to drop straight down, route to the side, or exit upwards to meet a specific cable management channel, we can match the mold to your chassis.

Length & Gauge Optimization: Avoid the clutter of a 10 ft cable when your rack only needs 3 ft. We cut and mold cables to your exact length specification using 18AWG, 16AWG, or 14AWG copper wire, helping you control material costs.

Color Coding: For complex IT racks or redundant power supplies (A/B feeds), we can manufacture the cord jacket in custom colors (Red, Blue, White, etc.) to help technicians instantly identify power paths.

Compliance & Documentation: If your equipment requires specific UL/cUL certifications for the North American market, we can match the cable stock and plug components to ensure your final assembly passes local compliance reviews.

Contact Us

✔ Rigorous QC Testing | ✔ OEM & ODM Welcomed | ✔ Fast Sample Dispatch

If you are designing a wall-mounted display, building a dense server rack, or manufacturing compact machinery, send us your clearance requirements, target length, and wire gauge. We will help you specify the exact exit angles you need.
