16AWG US AC Power Cord -NEMA 5-15P to IEC C13
Durable SJTW/SJT jacket construction features 105°C heat resistance and VW-1 flame retardancy, optimized for both indoor heavy-duty and outdoor temporary environments.
Precision-molded NEMA 5-15P to IEC C13 connectors available in straight and right-angle configurations to maximize space efficiency in tight server racks.

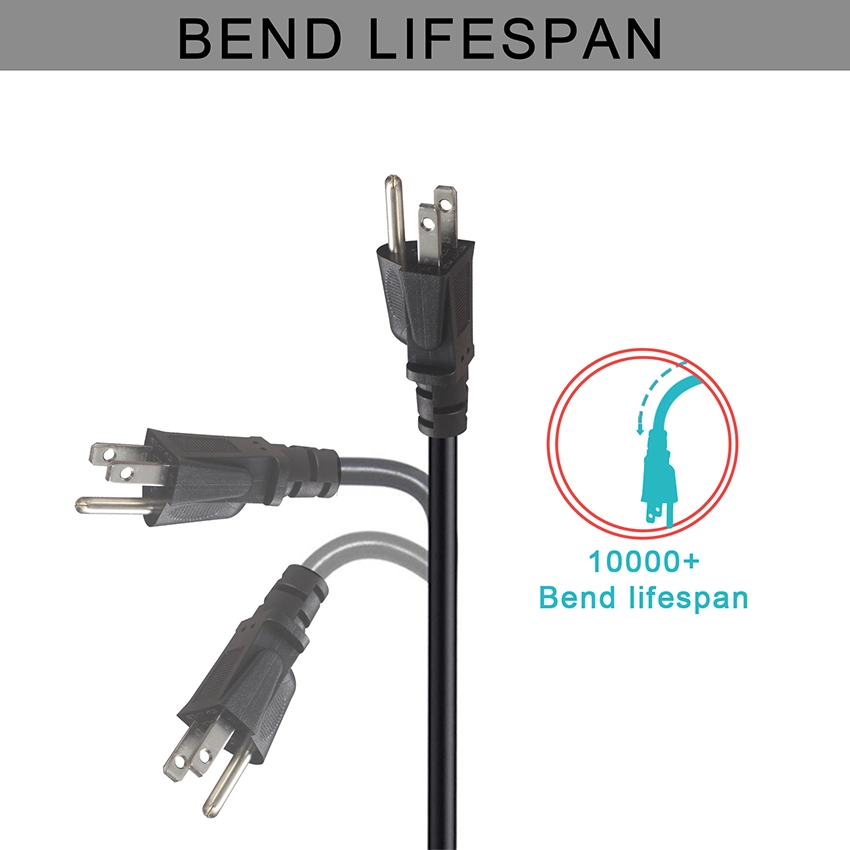

100% factory Hi-Pot and continuity tested with pure copper conductors to prevent overheating and ensure a service life exceeding 10,000 insertion cycles.

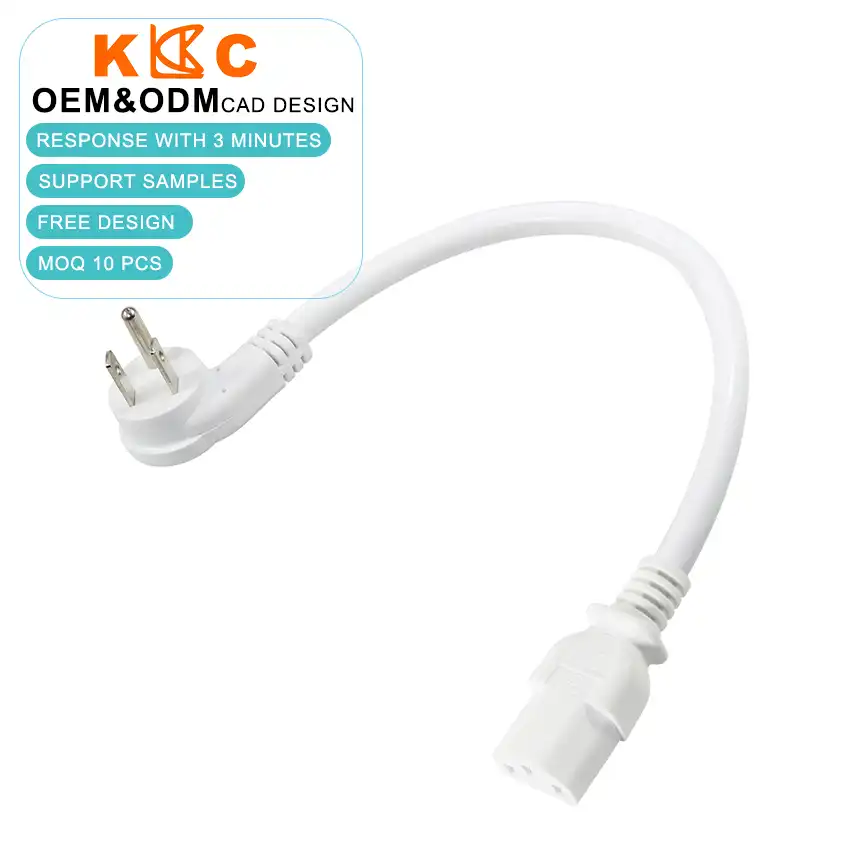

Professional OEM/ODM support with MOQ of only 10 PCS; includes free CAD design and rapid 3-minute response for custom length and color requirements
- Product Description
UL Listed 16AWG US AC Power Cord with NEMA 5-15P to IEC C13 Connectors
Our heavy-duty UL Listed 16AWG US AC Power Cord is engineered to meet the rigorous demands of industrial and enterprise-level power distribution. Featuring a high-conductivity pure copper core and a reinforced SJTW jacket, this cord provides a secure and efficient power link between standard US wall outlets and critical equipment such as servers, industrial machines, and workstations.
Why Choose Our UL Listed 16AWG US AC Power Cord?
In high-load environments, power cable failure is not an option. We prioritize mechanical integrity and electrical safety through precision manufacturing and premium materials.
Industrial-Grade SJTW Weatherproof Jacket
Unlike standard indoor cables, our SJTW jacket offers enhanced durability. It is rated for 300V and can withstand temperatures up to 105°C. The VW-1 flame retardant rating ensures maximum safety in high-density rack environments.

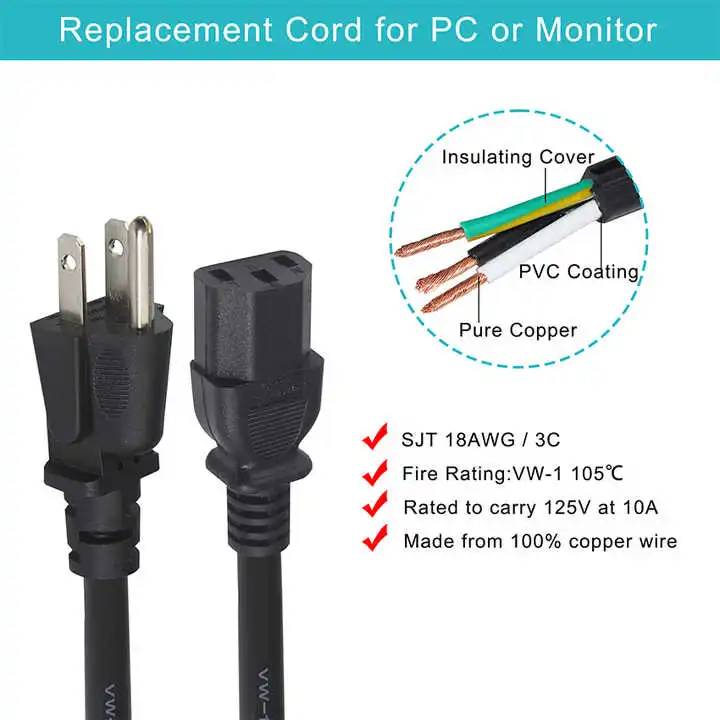

Optimized 16AWG Copper Conductors
The 16AWG (3x1.31mm²) specification provides a higher current-carrying capacity compared to standard 18AWG cords. This reduces heat buildup during continuous operation, protecting your hardware from power fluctuations and efficiency loss.
Complete Product Specifications
| Parameter | Specification Detail |
|---|---|
| Connector A | NEMA 5-15P (Standard 3-Pin US Plug/Flat plug) |
| Connector B | IEC 60320 C13 (Standard PC/Server Inlet) |
| Wire Gauge | 16AWG x 3C (1.31mm² Pure Copper) |
| Cable Type | SJTW / SJT (UL Certified) |
| Voltage/Current Rating | 125V / 13A - 15A |
| Temperature Rating | 105°C (221°F) |
| Safety Certification | UL, cUL Listed (File No. E484253) |
| Color Options | Black, White, or Custom Colors |
Professional Applications You Can Trust
This 16AWG power cord is specifically designed for high-draw equipment. It is the preferred choice for IT professionals managing data center server racks where C13 inlets are standard. The robust construction also makes it suitable for industrial control cabinets and medical diagnostic machinery.
Furthermore, the availability of right-angle plug options allows for clean cable management in tight spaces, reducing stress on the wall outlet and preventing accidental disconnections in high-traffic work areas.
Advanced Safety Features
Safety is integrated into every millimeter of our production process. Every UL Listed 16AWG US AC Power Cord undergoes a 100% Hi-Pot test to verify insulation integrity and a continuity test to ensure perfect electrical flow.
The outer PVC jacket is formulated for flexibility and impact resistance, preventing cracks or fraying even under frequent movement. The molded strain relief protects the internal wire connections from mechanical fatigue, extending the product lifecycle significantly.

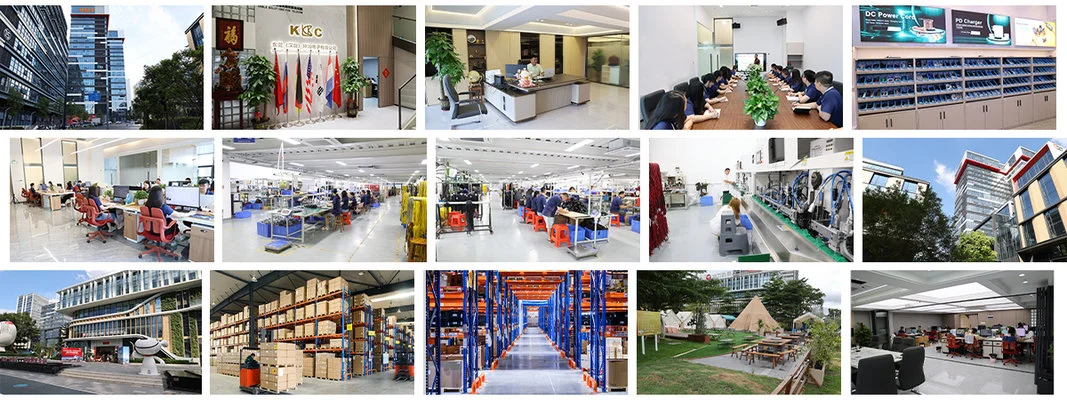

Manufacturing Excellence
With over 17年 of expertise in power cable manufacturing, we maintain strict compliance with international standards. Our facility utilizes high-speed automated extrusion and molding technology to ensure consistency across every batch. All materials used are 100% compliant with RoHS and REACH environmental regulations.
Frequently Asked Questions
Q: What is the difference between SJT and SJTW jackets?
A: SJT is designed for heavy-duty indoor use, while SJTW includes additional UV and moisture resistance, making it suitable for temporary outdoor use or environments with higher humidity.
Q: Can this 16AWG cord replace a standard 18AWG cord?
A: Yes. A 16AWG cord is thicker and can handle more current than an 18AWG cord, making it a safer and more efficient upgrade for almost any device using a C13 inlet.
Q: Are custom lengths and right-angle connectors available?
A: Absolutely. We offer full OEM/ODM services, including custom lengths from 1ft to 100ft and various angled connector orientations to suit your specific cabinet layout.
Custom Solutions for Your Business
We provide comprehensive CAD design services and rapid prototyping for custom power solutions. Whether you require specific color coding for phase identification or unique packaging for retail, our low MOQ of 10 PCS ensures flexibility for businesses of all sizes.
