NEMA 1-15P to IEC320 C18 Power Cord for Non-Grounding OEM Equipment Integration

Why Choose Our NEMA 1-15P to IEC320 C18 Power Cord?

This product is for buyers who need a controlled 2-pole power cord structure, not a grounded computer cable. The important detail is connector matching: NEMA 1-15P is non-grounding, and IEC C18 is also a non-grounding IEC interface.

NEMA 1-15P 2-Prong Plug Supports Compatible Non-Grounding AC Input

The input side uses a NEMA 1-15P male plug with two flat blades and no grounding pin. This makes the cord suitable for equipment that is designed for non-grounding power connection.

For OEM buyers, the benefit is specification clarity. If the end product is Class II or otherwise approved for non-grounding use, a 2-prong plug avoids unnecessary connector bulk and keeps the cable structure aligned with the equipment design.

IEC320 C18 Interface Matches 2-Pole Equipment Power Requirements

The IEC C18 side is a 2-pole, non-grounding IEC structure. It is used in equipment designs where earth contact is not required by the approved electrical design.

Check this carefully. IEC C18 is commonly an appliance inlet, while IEC C17 is the mating cord connector. If your device drawing shows a C18 inlet on the equipment, the detachable cord side may need IEC C17 instead. If your project requires a panel-mounted C18 connector assembly, confirm the mounting and wiring drawing before quotation.

Non-Grounding Cable Architecture Reduces Mis-Specification Risk

This product should not be promoted as a grounded power cord. There is no ground pin on the NEMA 1-15P plug, and IEC C18 is part of the non-grounding IEC connector family.

That distinction protects buyers from compliance mistakes. For equipment that requires grounding, choose a NEMA 5-15P plug and a suitable grounded IEC connector family instead.

Molded Strain Relief Helps Protect Connector Exit Points

The NEMA plug end and IEC connector end can be built with molded strain relief. These shaped transition sections help spread bending force across the cable jacket instead of concentrating it at one narrow exit point.

This is useful for appliances, compact devices, and OEM modules where the cable may be bent behind panels, packed with equipment, or handled repeatedly during installation.

Complete Product Specifications

Buyer's Insight: The key selection issue is not only “C18” as a keyword. It is connector role. IEC C18 is typically an inlet, and IEC C17 is the matching cord connector. If your product drawing simply needs a cord that plugs into a C18 appliance inlet, ask for NEMA 1-15P to IEC C17. If you need a cable assembly with a C18 inlet mounted or integrated, provide the drawing before quotation.

Professional Applications You Can Trust

For double-insulated equipment, buyers often need a clean 2-pole power cord without a grounding path. The NEMA 1-15P plug and IEC C18 non-grounding interface keep the electrical structure aligned with compatible device designs.

For small appliances, audio equipment, lighting modules, and compact electronics, connector size and cable flexibility affect the final assembly. This cord can be configured with suitable jacket and length options so it fits the enclosure and routing path without excess cable.

For OEM equipment projects, documentation accuracy matters. If the drawing specifies C18 as an inlet, the mounting method and touch protection must be reviewed. If the device already has a C18 inlet and needs a detachable cord, verify whether C17 is the correct connector.

Advanced Safety Features

This is a non-grounding cable concept. It should be used only for equipment designed and approved for operation without an earth conductor. Do not use it as a substitute for grounded NEMA 5-15P or IEC C13/C14 cord systems.

The IEC connector role must be confirmed before production. Using a male inlet-style connector in the wrong exposed environment can create safety and compliance problems, so the final structure should be defined by drawing.

Wire gauge, jacket material, current rating, voltage rating, and certification route should be matched to the final application. A connector name alone is not enough to approve the cable assembly.

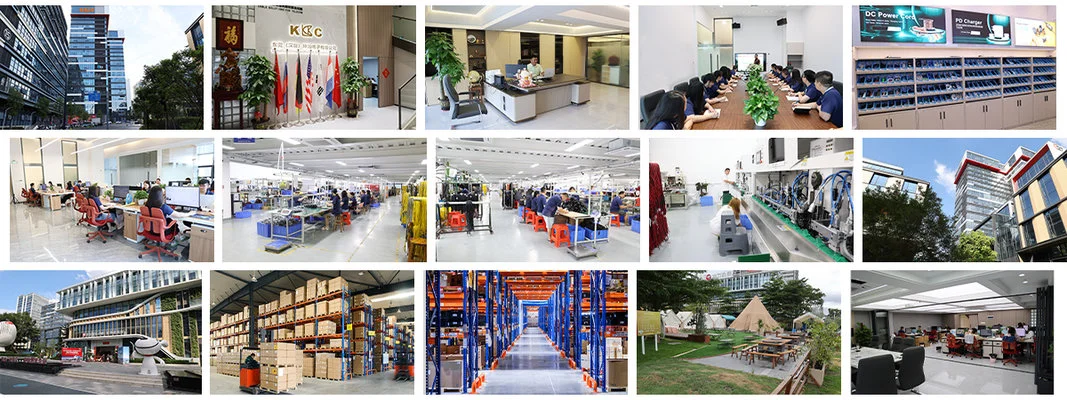

Manufacturing Excellence

Our factory supports OEM and ODM production for custom non-grounding power cord assemblies, including NEMA 1-15P plugs, IEC C18 or related IEC connector structures, molded strain relief, cable printing, jacket selection, packaging, and compliance documentation. Inspection scope, test records, factory history, and certification files can be confirmed according to your purchasing checklist before bulk order approval.

Frequently Asked Questions

Q: Is NEMA 1-15P to IEC320 C18 a grounded power cord?

A: No. NEMA 1-15P is a 2-prong non-grounding plug, and IEC C18 is a 2-pole non-grounding IEC interface. If the equipment requires grounding, this is not the correct cord structure.

Q: Is IEC C18 the same as IEC C17?

A: No. IEC C18 is typically the appliance inlet, while IEC C17 is the mating cord connector. If your cable needs to plug into an IEC C18 inlet, the connector on the cable side is usually IEC C17.

Q: What applications are suitable for this non-grounding power cord?

A: It is suitable for compatible double-insulated equipment, selected small appliances, audio devices, LED modules, and OEM systems designed for 2-pole non-grounding power input.

Q: What information is needed for a quotation?

A: Please provide cable length, wire gauge, jacket material, connector role, IEC mounting or mating drawing, target certification, order quantity, packaging requirement, and any cable printing or molded logo requirement.

Custom Solutions for Your Business

Connector Role Confirmation: Confirm whether your project needs IEC C18 as an inlet structure or IEC C17 as the mating cord connector. This prevents drawing errors and purchasing rework.

Cable Length & Wire Gauge: Define cable length and select 18AWG or 16AWG pure copper conductor options according to load, flexibility, and certification route.

Custom Molding: Adjust the NEMA 1-15P plug shape, IEC connector housing, strain relief length, cable exit direction, and molded branding to match your equipment design.

Certification Matching: Cable markings, compliance documents, packaging labels, and test requirements can be prepared according to your target market and purchasing checklist.
